Yalan 318 Cartridge Mechanical Seal - China

Basic Features

Structure: Single-End

Pressure: General Pressure Mechanical Seals

Speed: General Speed Mechanical Seal

Temperature: General Temperature Mechanical Seal

Performance: Wear and Medium Corrosion

Standard: API610

Model NO: 318

Balance: Balanced

Specification: Inner Diameter: 25 mm to 110 mm

Product Detailed Description

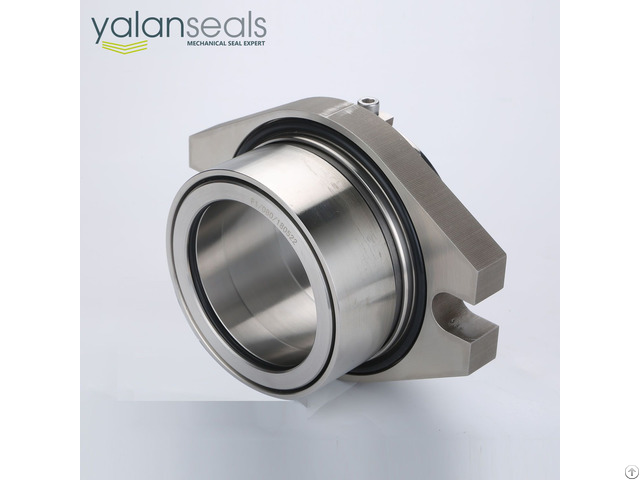

YALAN 318 Cartridge Mechanical Seal for Sewage Pumps Structural Features: single end, multi springs, balanced, independent direction of rotation, cartridge mechanical seal.

The compensation components are supported on the sleeve so they rotate with the shaft.

The elastomers protect the springs to avoid their direct contact with the sealed mediums so that the springs will not be jammed or corrupted.

This lasts the life time of the mechanical seal.

Multiple springs make sure the load on the seal faces are balanced.

The sleeve is locked to the shaft by the elastomers so that there will be no axial movement and the sleeve will not be able to damage the shaft either.

The axial and radial dimensions are both very small and it is very suitable to replace gland packing.

Industrial Standards: API610 Scopes of Application: widely used in water treatment, power plants, metal processing, pharmacy, chemical fertilizer industry, and food production.

Designed for water pumps, sewage pumps, chemical pumps, double suction pumps, paper pulp pumps and other rotary devices.

This seal component is suitable for replacing gland packing.

Operation Parameters:

Pressure: 2 - 2.4 MPa or less

Temperature: 40 ~ 200 ºC

Linear Speed: 20 m/s or less

Materials:

Rotary Ring Face: Carbon/SiC/TC

Stationary Ring Face: SiC/TC

Elastomers: EPDM/FKM/Aflas/FFKM

Springs: SS304/SS316L/HC-276

Metal Parts: 2Cr13/SS304/SS316L

Mediums: water, oil, acid, alkali, salt, solvents, paper pulp and other medium corrosion content.

Customization: Changes of materials for getting other operating parameters are possible.

Contact us with your requirements.
