Yalan H10 Multi Spring Super Thin And Balanced Mechanical Seal - China

Basic Features

Structure: Single-End

Cartridge or Not: Not Cartridge

Pressure: General Pressure

Speed: High Speed Mechanical Seal

Temperature: General Temperature

Performance: Wear and Corrosion

Standard: Specifically Customized

Model NO: H10

Balance: Balanced

Specification: Inner Diameter: 15 mm to 100 mm

Product Detailed Description

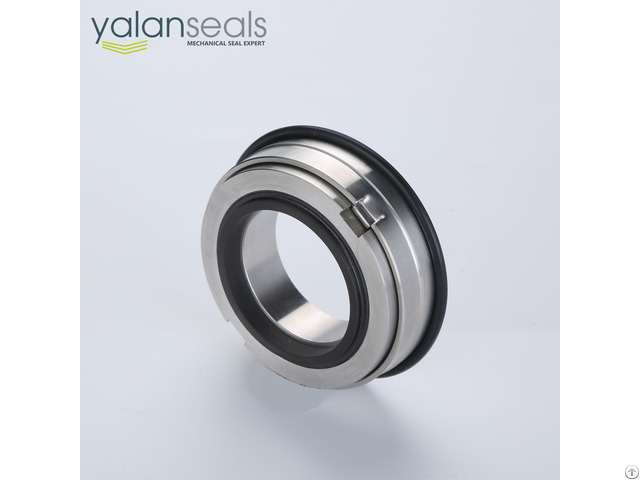

YALAN H10 Multi Spring Super Thin and Balanced Mechanical Seal for High Speed Pumps, Blowers, Decelerators, Gearboxes, and Rotating Joints Structural Features: single end, multi springs, balanced, independent rotary direction, still structure mechanical seal.

This seal has very small operating length so that it is suitable for replacing outer-framework oil seals for sealing the oil side of the high speed pump gearboxes.

All compensation components are pre-assembled as a whole body and the springs will not be able to be fell out.

The whole seal is very compact and easy to install.

It has very great stability and works well with high speed conditions.

Loads on the seal faces are well balanced.

Industrial Standards: Specifically Customized Scopes of Application: widely used in different types of oil, water, acid and alkali operational conditions.

This seal component was designed for high speed pumps, blowers, decelerators, gearboxes, and rotating joints.

Operation Parameters:

Pressure: 2.5 MPa or less

Temperature: - 40 ºC to 180 ºC

Linear Speed: 50 m/s or less

Materials:

Rotary Ring Face: 9Cr18/TC/SiC

Stationary Ring Face: Carbon/SiC

Elastomers: FKM/EPDM/FFKM

Springs: SS304/SS316/HC-276

Metal Parts: 2Cr13/SS304/SS316/TA-2


Mediums: water, oil, acid, alkali, and other corrosive mediums.

Customization: Changes of materials for getting other operating parameters are possible.

Contact us with your requirements.
