Yalan Lp D Cartridge Mechanical Seal - China

Basic Features

Structure: Double-End

Pressure: Medium Pressure Mechanical Seals

Speed: General-Speed Mechanical Seal

Temperature: General Temperature

Performance: Wear and Corrosion

Standard: Enterprise Standard

Model NO: LP-D

Balance: Balanced

Inner Diameter: 45 mm to 200 mm

Product Detailed Description

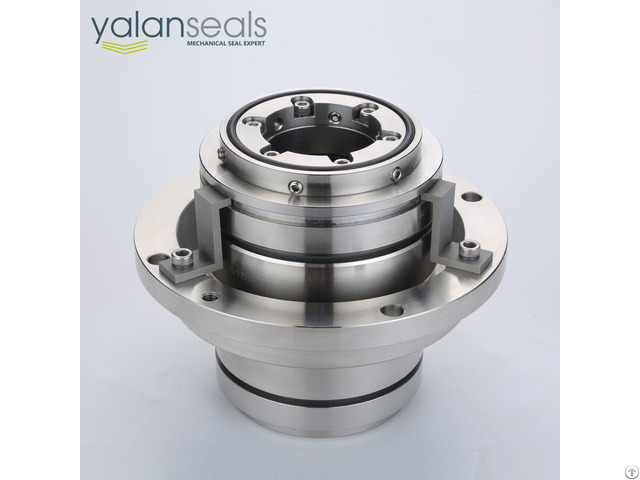

YALAN LP-D Cartridge Mechanical Seal for Paper Pulp Pumps and Sewage Pumps Structural Features: double end, multiple springs, balanced, independent rotary direction, still structure, clamp transmission and cartridge seal.

The compensation components are assembled into the flange and the elastomers protects the springs from the mediums to make sure the springs will not be jammed.

Multiple springs make the loads on the seal faces balanced.

The second end seal at the sealant side accomplish the second sealing and prevent the leakage of the mediums and sealants.

The sleeve are supported by the elastomers on the shaft and there is no axial movement and no damage to the shaft.

The seal faces are close to the rotor and have high cooling and lubrication efficiency.

The special design of this seal can work with counter pressure and there are diversion trenches inside the flange so that the cooling effects are evenly distributed.

This seal has to work with flush system and the sealant pressure should be 0.1 - 0.3 MPa and flow rate should be 3 - 8 L per minute.

Industrial Standards: Enterprise Standard Scopes of Application: widely used in paper making, power generating and sewage treatment.

It is specifically designed for paper pulp pumps and sewage pumps.

Operation Parameters:

Pressure: 0 ~ 1.6 MPa

Temperature: - 40 ~ 180 ºC

Linear Speed: 20 m/s or less

Materials:

Rotary Ring Face

Medium Side Rotary: SiC/TC

Sealant Side Rotary: SiC/TC

Stationary Ring Face

Medium Side Stationary: SiC/TC

Sealant Side Stationary: Carbon/SiC/TC

Elastomers: FKM/EPDM/PTFE

Spring: SS316/HC276

Metal Parts: SS316L/2507/2205

Mediums: paper pulp and sewage.

Customization: Changes of materials for getting other operating parameters are possible.

Contact us with your requirements.
