Yalan Mn206 Mechanical Seal - China

Basic Features

Structure: Double-End

Pressure: General Pressure Mechanical Seals

Speed: General Speed Mechanical Seal

Temperature: General Temperature Mechanical Seal

Performance: Wear and Corrosion

Standard: DIN24960, GB6556, ISO3069

Model NO: MN206

Balance: Unbalanced

Specification: Inner Diameter: 25 mm to 160 mm

Product Detailed Description

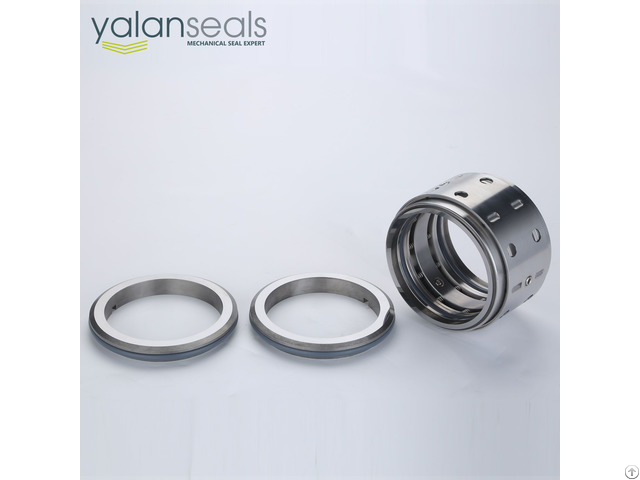

YALAN MN206 Mechanical Seal for Slurry Pumps and Desulphurization Pumps Structural Features: double end, multiple springs, unbalanced, independent rotary direction, lug transmission.

The axial dimensions are small and the load on the seal faces are balanced.

The compensation components are pre-assembled as a whole body.

The seal is easy to install and widely used.

It is suitable to transfer crystallized mediums with particles.

Circulated Barrier liquid is needed for operation.

The barrier liquid pressure should be 0.1 to 0.2 MPa higher than the pressure of the sealed mediums.

The barrier liquid will not leak into the mediums so the product will not be contaminated.

Industrial Standards: DIN24960, GB6556, ISO3069 Scopes of Application: widely used for working with mediums such as crystallized acid, alkali and organic solvents.

Used in coal washery, mines, water treatment, metallurgical plants, oil refining, and aluminium oxide production.

It is specifically designed for slurry pumps and desulphurization pumps.

Operation Parameters:

Pressure: 0 to 1 MPa

Temperature: - 40 ºC to 180 ºC

Linear Speed: 15 m/s or less

Materials:

Rotary Ring Face: Carbon/SiC/TC

Stationary Ring Face: Carbon/SiC/TC

Elastomers: FKM/Aflas/EPDM/FFKM

Springs: SS304/SS316/HC276

Metal Parts: 2Cr13/SS304/SS316L

Mediums: Solid content no more than 25% such as coal cinder, slag, clinker, slurry, alumina powder etc.

Customization: Changes of materials for getting other operating parameters are possible.

Contact us with your requirements.
