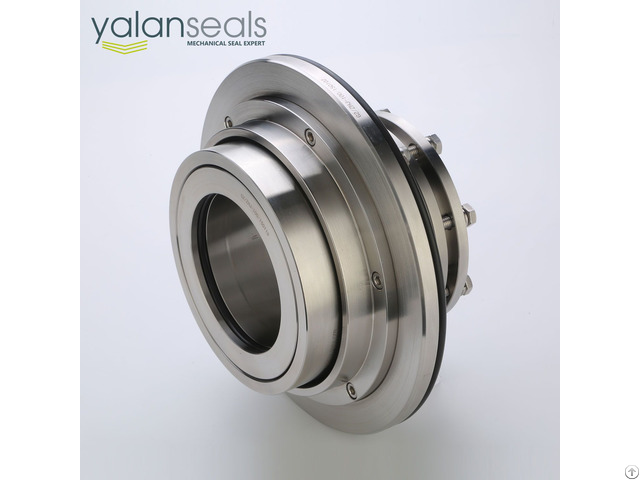

Zhj Cartridge Mechanical Seals - China

Basic Features

Structure: Single-End

Pressure: General Pressure Mechanical Seals

Speed: General Speed Mechanical Seal

Temperature: General Temperature Mechanical Seal

Performance: Wear

Standard: DIN24960, ISO3069, ANSI B73.1M

Model NO: ZHJ

Balance: Balanced

Specification: Inner Diameter: 35 mm to 170 mm

Product Detailed Description

ZHJ Mechanical Seals for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps Structural Features: single end, multiple springs, with spring protector, balanced, independent direction of rotation.

The component is cartridge seal with easy installation.

The compensation components are supporting the sleeve.

The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content.

This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component.

Easy installation, no need to disassemble the seal cavity for the installation.

Industrial Standards: DIN24960, ISO3069, ANSI B73.1M Scopes of Application: mainly used in paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants) and slurry pumps for industries such as coal washery, mining, sewage treatment, paper making, metallurgy, power plants, and chemical engineering.

This seal works as an alternative to similar products of n.

Operation Parameters:

Pressure: 0 ~ 1.2 MPa or less

Temperature: - 20 ~ 130 ºC

Linear Speed: 10 m/s or less

Pressure of Cooling Water: 0.1 MPa or less

Solid Capacity: 30% or less

Materials:

Rotary Ring Face: SiC/TC

Stationary Ring Face: SiC/TC

Elastomers: Viton/EPDM/Aflas

Springs: SS304/SS316/HC276

Metal Parts: 410S/SS304/SS316/SS316L/2 507/2205

Mediums: paper pulp, coal cinder, slag, ash and other fluids with solid powder.
