Dry ice slices/block machine JHK100

SINOCEAN TECHNOLOGY POWER

Description

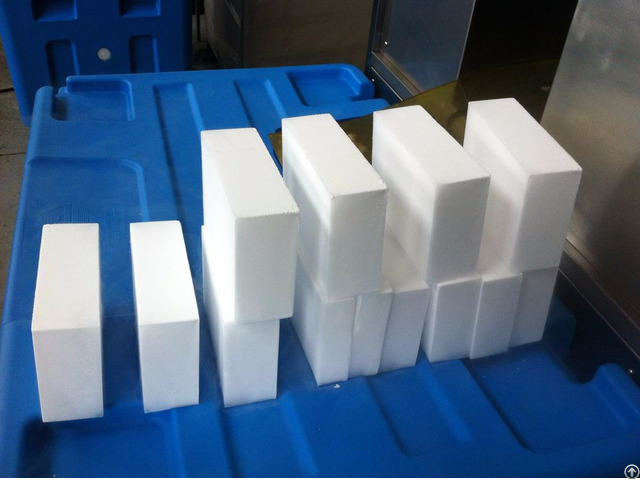

Our standard dry ice machine JHK100 is producing a slice with a dimension of 125 x 105 x 25 mm which is normally used for airline catering.

It is also possible to produce other thicknesses up to 60 mm by manual adjustment of the snow injection time.

Other slice dimensions are available on request.

Unique Features

PLC Omron - controls the complete process, injection and hydraulic

Independent performance - very constant production, independent of pressure and temperature

Integrated production control system- definition and supervision of production quantity

High process reliability - optimized process monitoring provides optimal performance and increases process reliability

Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users

Minimum floor space for high production performance Specifications

Dry ice size : 125*105*(20-60)mm

Production capacity: 120-185kg/h

Dry ice density: ≥1.48t/m³

Raw materials: liquid co2 in storage tank, water content is less than 55ppm

Conversion rate: 40%-43.5%

Motor Power : 7.5kw

Oil Tank : 280L

Power supply : 380v/50Hz, 3p

Liquid co2 inlet pressure: ≤2.1MPA

Liquid co2 inlet pipe: Ф10

Co2 gas discharge pipe: Ф50

Overall dimension: 1400*1100*1700mm

Weight : 1200kg
