Dry Ice Block Machine Jhk400 - China

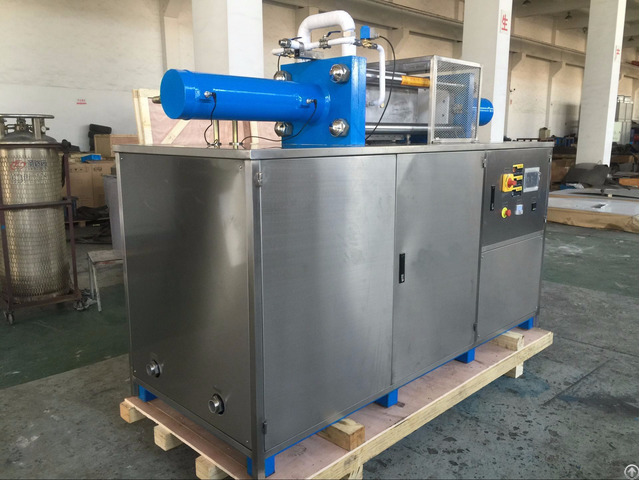

Dry ice block machine JHK400

SINOCEAN TECHNOLOGY POWER

Description

Our standard dry ice machine JHK400 is producing a block with a dimension of 300 x 255 x (50-260) mm which normal weighs 3kg-30kg.

The ice blocks are mainly applied in cold chain, refrigeration storage, and dry ice cleaning industry (deburring).

Other block ice dimensions are available on request.

Unique Features

PLC Omron - controls the complete process, injection and hydraulic

Independent performance - very constant production, independent of pressure and temperature

Integrated production control system- definition and supervision of production quantity

High process reliability - optimized process monitoring provides optimal performance and increases process reliability

Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users

Minimum floor space for high production performance Specifications Dry ice size : 300*255*(50-260)mm

Production capacity: 400-650kg/h

Dry ice density: ≥1.45t/m³

Raw materials: liquid co2 in storage tank, water content is less than 55ppm

Conversion rate: 40%-43.5%

Motor Power : 13.5kw

Oil Tank : 280L

Power supply : 380v/50Hz, 3p

Liquid co2 inlet pressure: ≤2.1MPA

Liquid co2 inlet pipe: Ф20

Exhaust pipe diameter: Ф70

Overall dimension: 2900*1100*1900mm

Weight : 2800kg
