Dry Ice Pelletizer Jh50 - China

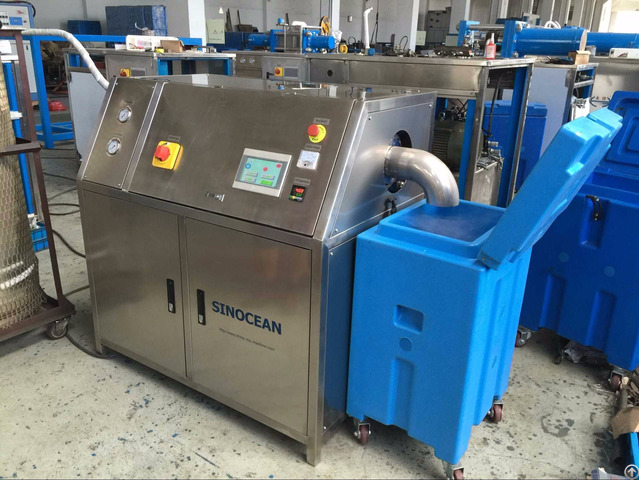

Dry Ice Pelletizer JH50

SINOCEAN TECHNOLOGY POWER

Description

The Pelletizer offers automatic production capability of up to 50kg per hour of consistent, high-density dry ice pellets using Liquid COâ‚‚ and electrical power.

Compact and reliable the machine puts dry ice production in your hands.

The dry ice pelletizer is driven by a powerful hydraulic unit featuring instant push button start.

Fully automatic control of oil temperature and dry ice snowing process guarantees continuous dry ice production without any supervision right from push button start.

.

Unique Features

PLC Omron - controls the complete process, injection and hydraulic

Independent performance - very constant production, independent of pressure and temperature

Integrated production control system- definition and supervision of production quantity

High process reliability - optimized process monitoring provides optimal performance and increases process reliability

Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users

Minimum floor space for high production performance Specifications Dry ice size : Ф3mm, 16mm

Production capacity: 50kg/h

Dry ice density: ≥1.48t/m³

Raw materials: liquid co2 in storage tank, water content is less than 55ppm

Conversion rate: 40%-43.5%

Motor Power : 3kw

Oil Tank : 100L

Power supply : 380v/50Hz, 10A

Liquid co2 inlet pressure: ≤2.1MPA

Liquid co2 inlet pipe: Ф8mm

Co2 gas discharge pipe: Ф50mm

Overall dimension: 1100*600*1200mm

Weight : 580kg
