Dry Ice Reformer JHR1800

SINOCEAN TECHNOLOGY POWER

Description

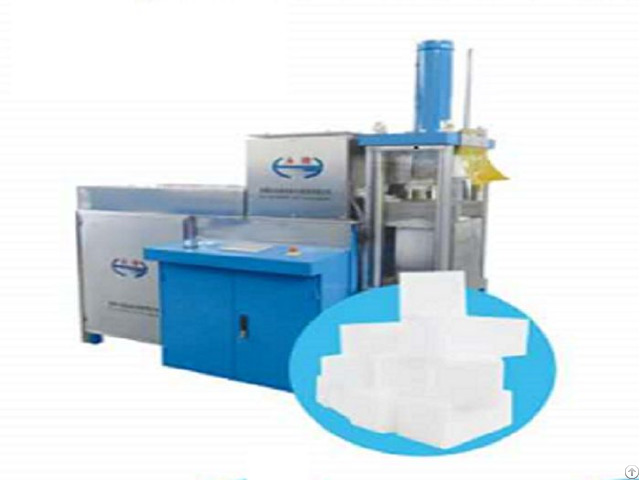

Our standard dry ice reformer machine JHR1800 is designed to optimise the production of dense dry ice blocks in various sizes by compressing dry ice pellets.

Be it in combination with an exisiting or with a new dry ice pelletizer, JHR1800 will be a very convenient tool to complement the dry ice pellet business with dry ice blocks.

Unique Features

PLC Omron - controls the complete process, injection and hydraulic

Independent performance - very constant production, independent of pressure and temperature

Integrated production control system- definition and supervision of production quantity

High process reliability - optimized process monitoring provides optimal performance and increases process reliability

Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users

Minimum floor space for high production performance

Specifications

Dry ice size and Production capacity :

4-95×95×(10-60)mm, productopm capacity: 400kg/hr to 550kg/hr

2-125×105×(10-60)mm, production capacity: 400kg/hr to 550kg/hr

Dry ice density: ≧1.50t/m³

Raw materials: Φ3*(1-10)mm

Conversion rate: ≧98%

Motor Power : 7.5kw

Oil Tank : 110L

Power supply : 380v/50Hz, 3p

Exhaust pipe diameter: Φ70

Overall dimension: 2000*1100*1600mm

Weight : 750kg
