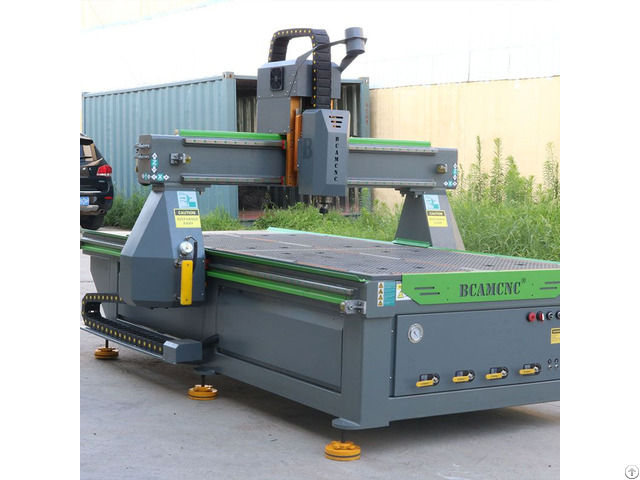

Cnc Router Linear Atc 12 Tools Woodworking Machinery Center For Panel Furniture - China

Cnc Router Linear Atc 12 Tools Woodworking Machinery Center For Panel Furniture Working area: 2000*3000*200mm|4´*8´ 2 CE standard 3 Italian HSD 9.5KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30) 4 10mm Heavy duty body 5 Active safety system 6 Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission 7 25mm Heavy-duty Hiwin HG Series linear bearing 8 Vacuum table+T-solts 9 Taiwan Syntec 6MA 10 Japan Yaskawa servo motor and drivers system 11 Delta brand VFD-B variable frenquency drive 12 8 Position Automatic Tool Changer (options: 10, 12 position) 13 Tool Cone Holder-for east bit changing 14 Solid State limit switches 15 3 Years Warranty meters Standard Specifications BCM1325C X, Y, Z Working Area 1300*2500*200mm|4´*8´ Optional Working Area 1300*1300*200mm|4´*4´ 1500*3000*200mm|5´*10´ 2000*3000*200mm|6´*10´ 2000*4000*200mm|6´*13´ 2000*6000*200mm|6´*20´ Spindle Power 9kw Italy HSD air cooling spindle X, Y, Z Traveling Positioning Accuracy ±0.03/2000mm Table Surface Vacuum table+Intergrated T-solt table clamping System X, Y, Z Rail and Trasmission X Y axis gear transmission, Z axis TaiwanTBI Ball Screw Max.

Rapid Travel Rate 80m/min Max.

Working Speed 60m/min Cutting thickness According materials Spindle Speed 6000-24000RPM Drive Motors Japanese Yaskawa Servo Drive System Working Voltage AC380v/50HZ/3 phase Command Language G code Operating System Taiwan Syntec 6MB control system Interface USB Software Compatibility Option: BCAMPRO/VCarve/VCa rve Pro/ArtCAM/UCANCAM, etc.

Running Environment Temperature: -20℃~45℃ Relative Humidity: 5%~75% Our advantage: 1 - Overseas showroom 2 - More options of services 3 - Local storage 4 - Super cost effective

Company Contact:

• Posted By: Jinan BCAMCNC Machinery Co., Ltd

• Phone: +86 15668362753

• Address: No.1166 Xinluo Ave, JiNan , ShanDong PR, China

• Email:

• Website: https://www.bcamcnc.com

• Business Description: BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory，a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
