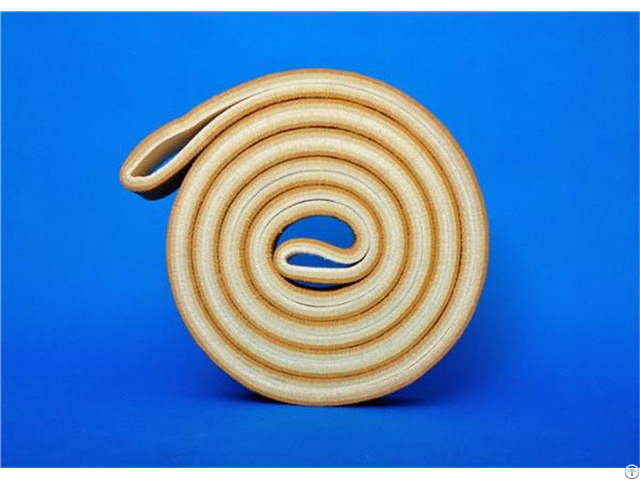

Pbo And Kevlar Endless Seamless Belt - China

Description：

Seamless Industry Felt Belt is kind of conveyor belt which specially designed for the aluminum factory, it have heat resistance characteristics, the highest temperature 600c degree, surface soft, lightweight, easy to store, that kind of belt solve the problem of the traditional graphite marks on aluminum extrusions, the felt belt could make the aluminum profile keep clean, no scratches, by the majority of aluminum factory favorite, all the size could do as your machine model&operating temperature, welcome to contact us to customize your plan.

Specification：

Color: Brown+Yellow

Material: PBO+ Para aramid+ Para aramid fabric

Temperature Resistance: 600℃(<10 min)& 550℃(long time)

Length: 900mm～25000mm

Width: 20mm～1700mm


Total Thickness: 5mm～15mm

PBO Thicknes: 2mm～8mm

Hard Degree: Hard treatmrnt by resin Advantage

1 Heat resistant up to 600℃;

2 No elongation under high tension and heavy load;

3 No seam, splice or joints: no breaks due to weak zone, High density structure;

4 Smooth and even belt surface: scratch-free extrusions;

5 Excellent belt tracking on the cooling table;

6 Capability of withstanding high temperatures thanks to a batt of aramidic fibres needled on an endless base fabric;

7 Low heat conductivity and high density with good wear resistance and impact resistance property under heavy conditions;

8 No generation of decomposed gases nor deposition to the extruded product through melting;

9 The belt is woven endless, and therefore needs no further seam or splice.

Application：

1 - Applied to high-temperature cooling table in aluminum extrusion profile plant, the max temperature resistance 600℃

2 - Aluminum extrusion's discharge port and the fist level felt type cooling table

3 - This kind of endless felt belt is main used for the felt type cooling table in the Aluminum Extrusion Industry.
