Polymer Roller - China

Polymer Roller High Quality Polymer Roller is one of our main product.

Custom Polymer Roller is suitable for the steel industry, harbor, coal industry, power industry, cement industry, etc.

We will be your best choose!

Polymer roller manufacturer: Hengguang Conveying Machinery

Notes:

Application: High Quality Polymer Roller

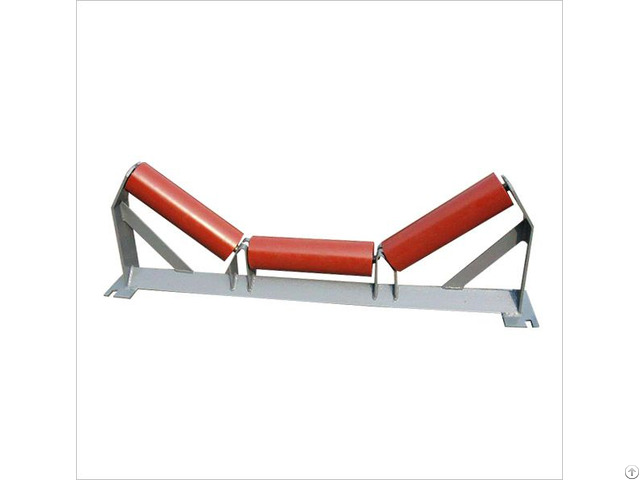

High Quality Polymer Roller is Used under loading points where material impact (lump size, density, height) could damage the belt if no cushion.

Impact Idler fitted with rubber rings made from natural / Synthetic / Neoprint material.

The fixing arrangement and dimension of rings are suitably design for easy replacement and interchangeability which protect the belt by absorbing impact at loading point.

20º, 35º and 45º Trough Angle.

It is suitable for the steel industry, harbor, coal industry, power industry, cement industry, etc.

it's widely used in Chemical Industry, Fertilizer, Salt, Sugar, Pulp Paper, Acid and Alkaline, General Industry, Coal Mining, Cement, Concrete, Limestone and Quarry.

High Quality Polymer Roller Size:

Standard Diameter Length scope(mm) Bearings Type(Min-Max) Idler's Shell Wall Thinkness

mm inch 63.5 21/2 150-3500 204 3.0mm-3.75mm

76 3 150-3500 204 205 3.0mm-4.0mm

89 31/3 150-3500 204 205 3.0mm-4.0mm

102 4 150-3500 204 205 305 3.5mm-4.5mm

108 41/4 150-3500 204 205 305 306 3.5mm-4.5mm

114 41/2 150-3500 204 205 305 306 3.5mm-4.0mm

127 5 150-3500 204 205 305 306 3.5mm-4.5mm

133 51/4 150-3500 204 206 207 305 306 3.5mm-4.5mm

140 51/2 150-3500 204 206 207 305 306 3.5mm-4.5mm

152 6 150-3500 204 206 207 305 306 307 308 4.0mm-4.5mm

159 61/4 150-3500 204 206 207 305 306 307 308 4.0mm-4.5mm Main uses:

1 - Chemical Industry.

2 - Fertilizer, Salt, Sugar, Pulp Paper, Acid and Alkaline, etc.

3 - General Industry.

4 - Coal Mining, Cement, Concrete, Limestone and Quarry, etc.

5 - Operating Conditio.

DETAILED SPECIFICATION

SPECIFICATIONS FOR ROLLER

Size diameter 60-220 mm length 190-3500 mm Tube carbon steel tube S235JR seamless steel tube Shaft 45# STEEL C45 as request

Bearing Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance

Seals Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.

Lubrication Grease is Lithium soap type grease with Rust Inhibitors.

Welding Mixed gas shielded arc welding end

Painting ordinary painting, hot galvanized painting, electric static spraying painting
