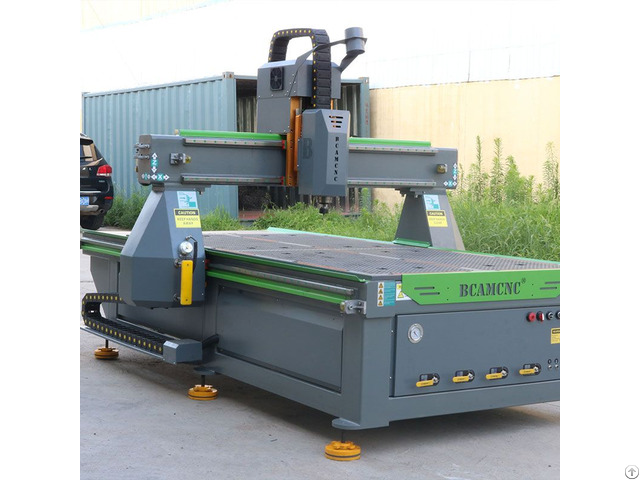

Wood Cutting Engraving 1325 Linear Automatic Tool Changer Atc Cnc Router Woodworking Machine - China

Wood Cutting Engraving 1325 Linear automatic tool changer ATC Cnc Router woodworking machine 1 Working area: 2000*3000*200mm|4´*8´ 2 CE standard 3 Italian HSD 9.5KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30) 4 10mm Heavy duty body 5 Active safety system 6 Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission 7 25mm Heavy-duty Hiwin HG Series linear bearing 8 Vacuum table+T-solts 9 Taiwan Syntec 6MA 10 Japan Yaskawa servo motor and drivers system 11 Delta brand VFD-B variable frenquency drive 12 8 Position Automatic Tool Changer (options: 10, 12 position) 13 Tool Cone Holder-for east bit changing 14 Solid State limit switches 15 3 Years Warranty meters Standard Specifications BCM1325C X, Y, Z Working Area 1300*2500*200mm|4´*8´ Optional Working Area 1300*1300*200mm|4´*4´ 1500*3000*200mm|5´*10´ 2000*3000*200mm|6´*10´ 2000*4000*200mm|6´*13´ 2000*6000*200mm|6´*20´ Spindle Power 9kw Italy HSD air cooling spindle X, Y, Z Traveling Positioning Accuracy ±0.03/2000mm Table Surface Vacuum table+Intergrated T-solt table clamping System X, Y, Z Rail and Trasmission X Y axis gear transmission, Z axis TaiwanTBI Ball Screw Max.

Rapid Travel Rate 80m/min Max.

Working Speed 60m/min Cutting thickness According materials Spindle Speed 6000-24000RPM Drive Motors Japanese Yaskawa Servo Drive System Working Voltage AC380v/50HZ/3 phase Command Language G code Operating System Taiwan Syntec 6MB control system Interface USB Software Compatibility Option: BCAMPRO/VCarve/VCa rve Pro/ArtCAM/UCANCAM, etc.

Running Environment Temperature: -20℃~45℃ Relative Humidity: 5%~75% Our advantage: 1 - Overseas showroom 2 - More options of services 3 - Local storage 4 - Super cost effective BCAMCNC, a professional machinery manufacturing company, with 6000 square meters factory, a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.

BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc.
