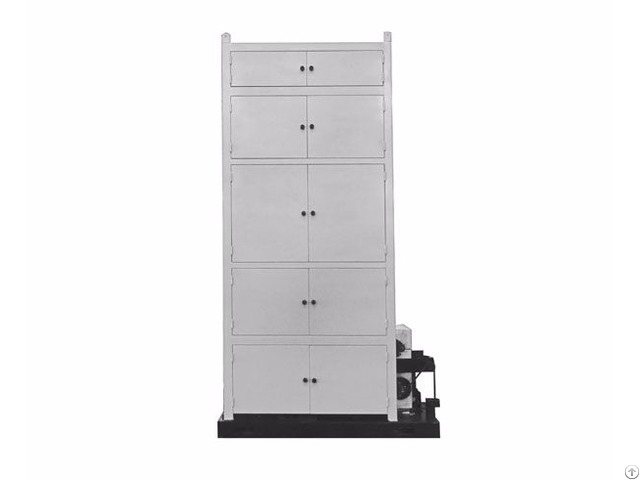

TH05 Lacquer Curing Oven Aluminum Tubes Line

TH05 lacquer curing oven which is used to polymerize the lacquer is the supporting equipment for aluminum collapsible tube production line.

It is the necessary equipment for all production lines with internal lacquering machines.

The machine is equipped with a single drive motor.

It can operate synchronously with the equipment before and after or operate separately.

Main technical parameters:

A.

Tube range: φ12.7-φ25mm or φ25-φ38mm

B.

Production speed: 60 tubes/min

C.

Motor power: 0.75kw

D.

Dimensions (including conveyer chain): 5132*1300*3040mm

E.

Weight: 1950KG

F.

Working temperature: 200-500℃

G.

Heating time: 240s

H.

Conveyer bowl: “C”basket

I.

Electric heating power: 4KW*8
