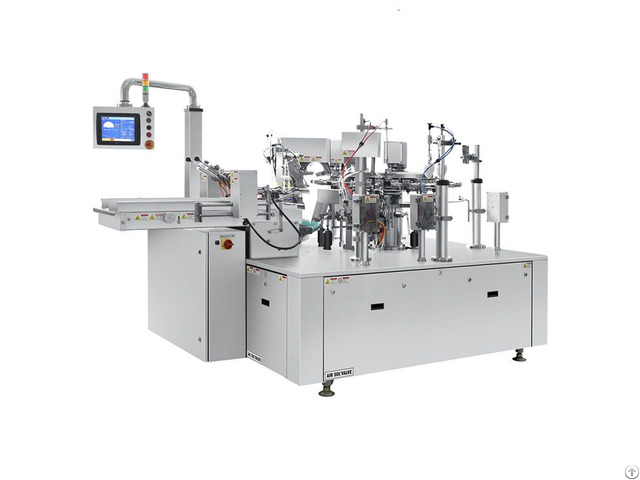

Double Bag Pick Fill Seal Machine Rz8 150s - China

Applications:

1 - Solid: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, pet food, etc.

2 - Granule: MSG, grain, refined monosodium glutamate, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, granular drug, pesticide, fertilizer, feed, etc.

3 - Powder, condiments, monosodium glutamate, slat, glucose, fine sugar, milk powder, washing powder, etc.

4 - Liquid: yellow wine, soy sauce, rice juice, drink, detergent

5 - Thick liquid: ketchup, peanut butter, sauce, chili sauce, bean butter

other materials can be bagged by the double bag filling sealing machine

Main Features andCharacteristics:

1 - Pouch type: The bag fill machine is suitable for kinds of pre-made pouches such as flat and stand-up pouches.

2 - High speed: Rezpack high speed bag fill seal machine reaches 90 bags/min.

3 - Easy to operate: PLC controller, HMI system, fault indication on the touch screen.

4 - Easy to adjust only about 10 minutes to change different pouches.

5 - Frequency control: speed can be adjusted by frequency conversion with the range.

6 - High automation: the high speed bag fill seal machine is unmanned in weighing and packing process, and alarms automatically in case of failure.

Safety and Hygiene

1 - The double bag filling sealing machine provides no fill, no seal as well as auto alarm when there is no pouch/ incorrect pouch opening.

2 - The mechine will automatically alarm and stop in case of inadequate air pressure.

3 - The filling sealing machine, installed with safety guards with sagety-switches, provides auto alarm and stop when the safety guards are opened.

4 - The bag packing machinery has hygienic structure, and the parts that touch products are made of sus304 stainless steel.

5 - Designed with imported engineering plastic bearings, the bag filling sealing machine requires no oiling and generates no contamination.

6 - The double bag filling sealing machine comes with oil-free vacuum pump to avoid pollution to the production enviroment.

Technical Parameters

Machine Name High Speed Bag Fill Seal Machine

Bag types Stand-up bag, portable bag, zipper bag, 4-side sealing bag, 3-side sealing bag, paper bag, etc.

Construction sus304 stainless steel

stations eight

Bags size W: 80~200mm L: 100~300mm

Filling Volume 5 -500g depending on type of products

Capacity 60-90 bags/min depending on type of product and packaging material used

Total power consumption 6.5KW

Machine Weight Approx.

1, 000 Kg

Machine Dimension 1540x1240x1465mm

Compress air requirement > 0.5m3/min (to be supplied by user)

Company Contact:

• Posted By: Unionpack International Inc.

• Phone: 86-577-66618600

• Address: No.518 Kaifaer Road, Economic Development Zone, Ruian , Zhejiang , China

• Email:

• Website: http://www.unionpackmachine.com

• Business Description: Unionpack, as a professional overseas sales and service team for REZPACK who is one of Chinas preeminent packaging machinery manufacturers, with more than two decades of experience in packaging machinery industry, our machine have been delivered to over 3000 companies in 30 countries.

  Our partners and technical consultants can be found in Europe, America and Southeast Asia, bringing us techniques and expertise from all over the world.

  Rezpack is certified to ISO9001 and CE standards, and have obtained more than 200 patents.

  Home to over 200 talented employees, and the workshop spans 11000 square meters, we can produce 150 diverse sets of packing equipment in one month.

  Every machine is made based on customers requirements and carefully debugged before shipping.

  Our R&D team is comprised of more than 30 people, to develops new equipment to keep up with ever changing technology and market demands.

  Besides, we have a professional after-service team, comprised of 20 people, who can provide one-to-one video calling, door-to-door service, as well as free technical training for our partners.

  We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 15 professional factories to supply whole packaging solution.

  Out target is to create the extra value for our customers.

  The Customer is our Partner!
