Preformed Bag Waterproof Packaging Machine - China

SPECIFICATION:

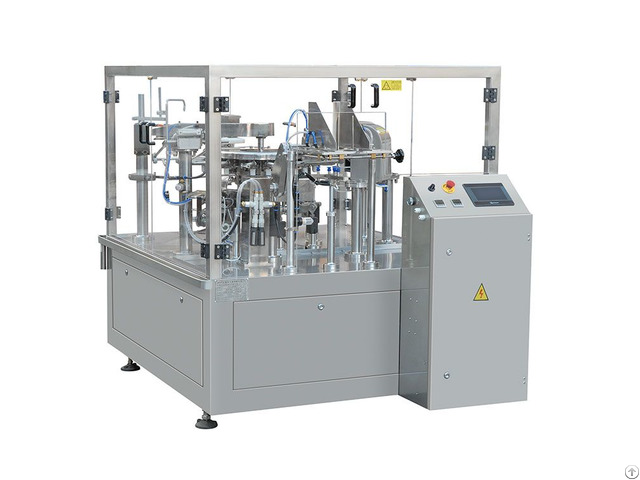

Preformed Bag Waterproof Packaging Machine

Applications:

1 - solid candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.

2 - Granule: grain, MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials, etc.

3 - Powder: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides fertilizers, chemical raw materials.

4 - Liquid: rice wine, soy sauce, rice vinegar, fruit juice, beverages, detergent and so on.

5 - Thick liquid: tomato sauce, peanut butter, jam, chili sauce, bean paste and so on

6 - Other materials can be bagging.

Main Features and Characteristics:

1 - Rotary preformed bag packaging machine is suitable for large and medium size production industries.

2 - Typical advantages of rotary preformed bag packaging machine are minimum material wastages, easy product and bag size changeover, better sealing property especially for boil-in-bag and pasteurize bag products.

3 - Rotary preformed bag packaging machine is versatile and suitable for all types of preformed bags packaging, including side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock re-closeable bags, stand-up pouch with or without spout, compound paper bag, etc., and only by quick adjustment without size parts change over.

4 - Rotary Packing Machinery can pack the liquid, thick liquid, powder, granule, and solid, just choose different measurement devices according to different materials.

5 - Operators friendly in design.

6 - asy to clean and low in maintenance.

7 - Complying with GMP standard, all product contact parts are in stainless steel or food grade materials

8 - State-of-the-art PLC and touch screen electric control system

Model RZ6-200, RZ8-200

No.

of working stations Six/Eight

Function Bags dispensing, Coding, Opening, Dosing, Heat sealing, and Bags discharge

Pouch type All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock re-closeable bags, stand-up pouch with or without spout etc.

Bags size W: 100~200mm L: 100~300mm

Filling Volume 5 – 1500g depending on type of products

Capacity 25-45bags/min depending on type of product and packaging

material used

Total power consumption 1.5Kw

Machine Weight Approx.

1, 000 Kgs

Machine Dimension 1540x1240x1465mm

Compress air requirement 0.4-0.8MP, Consumption> 0.3m3/min (to be supplied by user)
