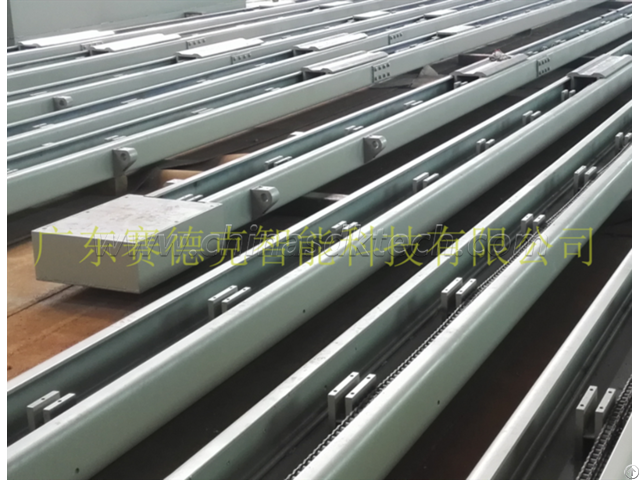

Raw paper feeding track

Automatic carton box factory Conveyor equipment, Automatic Wrapping factory Conveyor System Corrugated Board

Product : Raw paper feeding track

Art.

No.

: SSZ131A0

Features :

1 - Compact structure, rich function configuration and less space occupied can be conducive to satisfy the application requirements of

frequent order change and high-speed corrugated paper production line

2 - The separation between paper feeding and retracting areas will make it easier to convey base paper roll in corrugated paper production

line efficiently .

3 - Track length can be determined by the customer’s order structure and plant space

4 - Two paper trolleys, respectively for paper feeding and retracting

5 - Gear motor + chain drive mode will, on the premise that the operation requirements are met, feature higher safety and easier maintenance, compared to hydraulic motor + chain drive mode

6 - Hydraulic paper holding will be more convenient to make paper feeding and roll centered, and base paper holder aligned with paper element

more easily

7 - Auto steering device for paper retracting at 90 ° will, compared to electric turntable, be characterized at simpler structure, more convenient

installation and maintenance, no additional power energy as well as lower costs

8 - Invisible pneumatic buffer stopper (optional) will prevent the roll from being easily damaged

9 - Plastic chain conveyor (optional) features simpler structure, easier maintenance and lower cost

10 - Auto base paper roll conveyor (optional) could save manpower and improve efficiency

11 - Full-auto base paper holder, if any, can be used to feed, center and unload base paper roll automatically .

Parameters :

1 - Trolley running speed: 17 m / min

2 - Maximum weight of roll carrying: 4500kg

3 - Maximum weight of roll carrying for each chain retracting conveyor: 10000KG

4 - Maximum web of base paper roll: 2800mm

5 - Maximum diameter of hydraulic holding roll: 1520mm

6 - Paper feeding conveying time: it varies according to the distance between hydraulic holding feeding and center of base paper holder, generally about 40s (a distance of 7.5m)

7 - Paper unloading conveying time: according to the distance between the center of base paper holder and retracting trolley stop location, generally about 22s (a distance of 6m)

8 - Paper retracting conveying time: it varies according to the length of chain conveyor, generally about 6-7min (a distance of 6m, the length of 72m)

9 - Operator requirements: 3-5 persons, 2-3 persons (auto base paper roll convey) Functional :

1 - Necessary to base paper holder, used to convey base paper

2 - One-time bending formation by steel sheet, other than welding by ordinary section steel, with more stable structure

3 - Double station, equipped with imported hydraulic motors respectively for paper feeding and retracting
