High Negative Pressure Vacuum Drainage Bottle Medical Grade Pvc Non Irritating - China

High Negative Pressure Vacuum Evacuated Bottles Closed Wound Drainage System Disposable Closed wound drainage system, consist of 600ml PVC bottle, plastic fastenner, vacuum indicator with glue, rubber connector with glue, sliding clamp, male and female luer lock, connecting tube with roller clamp, closed cap, EO sterile .

High negative pressure-90kpa, vacuum, disposable, closed drain.

High vacuum closed drainage is a new concept of drainage, it can provide enough vacuum from high vacuum drainage equipment, and ensure the secretion drainage adequately.

It can create good post-operative healing environment by closed flap, in order to prevent infections and complications.

High vacuum drainage bottle can provide -90Kpa, it have arch upward curvilinear relationship between the change of negative pressure and the volume of drainage liquid.

The wastage of negative pressure is not very great.

It can provide efficiently continuous and stable drainage.

Even though the drainage bottle is higher than wound surface, it can always maintain the condition of vacuum drainage, and prevent the backflow of drainage liquid.

Product specification: - - - -

Item | High Negative Pressure Vacuum Evacuated Bottles Closed Wound Drainage System Disposable | Alternative name | Wound Drainage System, Vacuum Drainage Bottle | Material | Medical grade PVC | Feature | Hight negative pressure, vacuum, closed drain, disposable | Color | Transparent, white ortransparent blue or customized | Volume | 600ml, 1000ml or else | Type | 600ml PVC bottle, plastic fastenner, vacuum indicator with glue, rubber connector with glue, sliding clamp, male and female luer lock, connecting tube with roller clamp, closed cap | Sterile | Ethylene oxide sterile | Packing | 1pc / peel pouch, 10pcs / box, 4 boxes / carton or customized | Outer carton | Standard export corrugated carton | Certificate | CE, ISO9001, ISO13483, FDA | Quality standard | AQL 1.5 | MOQ | 5, 000 pcs or negotiatable | Sample | Free samples are approved | Port of loading | Shanghai, Qingdao or China port | Payment of terms | TT, L/C at sight | OEM | Customized volume, color, accessaries, printing, packing,, etc.

| Storage | Storedunder shady, cool, dry, ventilated and clean condition .

Avoid direct sunlight and high temperature .

| Shelf life | 2 years after the date of factory manufacturing .

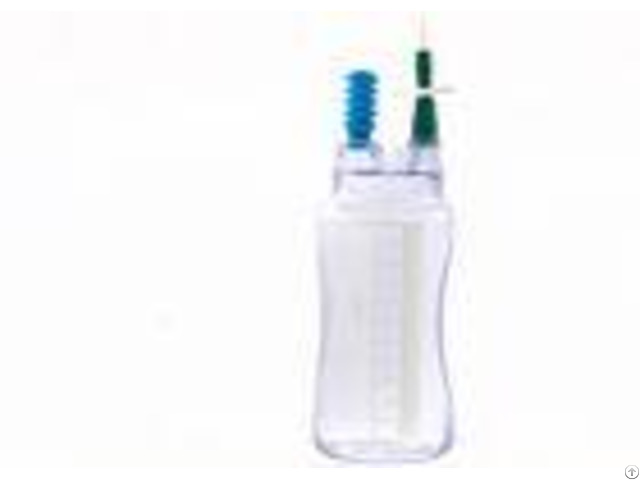

| - - - - Product description: 1 - 600ml PVC bottle body, white printing logo and scale, eary to read.

2 - Bottlevacuum indicator with glue, whiteplastic fastenner, blue rubber connector with glue, sliding clamp and female luer lock.

3 - 120cm tranparent connecting tube withroller clamp, maleluer lock, closed cap.

Product Feature: 1 - Medical grade PVC.

2 - High negative pressure, vacuum, closed drain.

3 - For single use only, prohibited to re-use.

4 - EO sterile, non-irritating, non-toxic.

5 - Infection control, high hardness, unbreakable.

6 - Donot use if the packing is damaged or open.

7 - 2 years shelf lifetime after manufacturing date.

8 - Stored under shady, cool, dry, ventilated and clean condition .

9 - Used for drainage blood, wast liquidsfrom body.

Closed & open drains comparison: 1 - Closed Wound Drains

Closed drains are formed by tubes.

One end is connected to a trocar that is inserted in the patients wound.

The other end is connected to a bottle, bag, bulb or reservoir, typically called an evacuator, which the exudate drains into.

This is the device into which the exudate drains.

There are three main types:

Vacuum Drainage ttle

Also called negative pressure drainage bottle.

Medical grade pvc.

Bulb Evacuator Also called a Grenade Evacuator.

Silicone.

3-Spring Evacuator Also called a Pancake or Hamburger Evacuator.

Used in conjunction with PVC drains.

2 - Open Wound Drains

This system drains fluid from the wound onto a gauze pad or into a stoma bag.

Product drawing & display:
