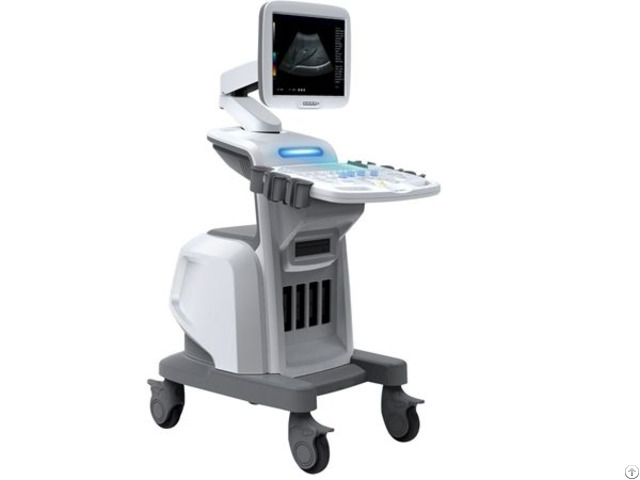

Canyearn A85 Full Digital Trolley Ultrasonic Diagnostic System Black And White Ultrasound Scanner - China

General Specification 1 - Main Features

Operationg Syetem Window 7

Monitor 15 inch LED high-resolution monitor

Scanning Mode B, 2B, 4B, B/M, 3D image reconstruction

Keyboard Back-lit Silicone Keyboard (option)

Cine Loop Up to 1024 frames

Gain 10-128dB

TGC 8 segment

Scanning Depth Up to 240mm

Dynamic Range 0-100dB

Pseudo-color 40, or customized

Body Marking 140

Focus 4

Magnification 0.8-6.0

Probe Connector 4

Language Chinese/English/Spanish

Matching Printer Laser/Vedio/Inkjet/Therma l printer

Peripheral Port USB, VGA, DICOM3.0, RS232

Measurement & Calculation B-mode: Distance, Perimeter, Area, Volume, Angle, Histogram, Cross Section, Hip Joint Angle M-mode: Heart Rate, Time, Gradient

Image Processing Technologies THI, Pre-process, Post-process, Dynamic Range, Contrast, Frame Correlation, Average Line, Edge Enhancement, Black-white Change over, Gray-scale Transformation&Adjust ment, Brightness, Gamma Correction

Diagnostic System Technology Digital Beam Forming

Intelligent Depth Gain Control

Real-time Dynamic Receiving Filtering

Ultra Wide-band Frequency Conversion Technology

Digital Frequency Scanning

Embedded High Speed Processor

Tissue Harmonic Imaging

Real-time Dynamic Aperture

Real-time Dynamic Receiving Focus

2 - Applications

Abdominal(Liver, Gallbladder, Spleen, Kidney, Pancreas)

Gynecology(Uterus, Cervix Uterus, Endometrium, Ovary, Ovarian Follicle, Hydatoncus, Enclosed Mass) Obstetric(AC, BPD, CRL, FL, THD, GS, OFD, HUMERUS, TIDIA, ULNA, HC, TAD, APTD, FTA, AFI, Analytic report of fetus and the growth curve)

Cardiology(LV, LV Function, Aorta, Mitral, Valve)

Urology(Left Renal Volume, Right Renal Volume, RUV, Prostate kidney)

Small Parts(Ophthalmology, Thyroid, Jaw and Face) 3 - Standard Configuration

Main system unit, 3.5MHz Convex probe, Permanent image storage unit, Specialist report(containing ultrasonic software package), User manual and disc 4 - Optional Items

Biopsy Bracket, USB disk 5 - Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency ) 7.5 MHz Linear Probe (3.5-14MHz variable frequency ) 7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency) 7.5 MHz Rectal Probe(80 elements) 6 - Advanced Technologies

PC platform

Full Digital Ultrasonic Kernel Engine

One Touch Optimizer

Tissue Harmonic Imaging

3D Imaging Reconstruction

DICOM 3.0 Packaging & Delivery

Packaging Details: Wooden Box Package

Net Weight: 80kg

Gross Weight: 89kg

Package Size: 1044*644*1245mm

Delivery Time: 5-10 working days Warranty

Two years for main unit (One year warranty for probes)
