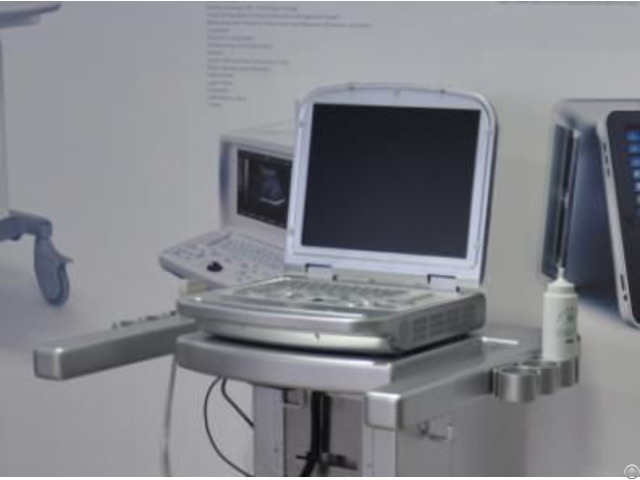

Canyearn C20 Full Digital Portable Ultrasonic Diagnostic System Color Doppler Ultrasound Scanner - China

General Specification 1 - Main Features

Operationg Syetem Window 7

Monitor 14 inch LED high-resolution monitor

Scanning Mode B, 2B, B/M, M, CW, C, D, 3D/4D

Keyboard Back-lit Silicone Keyboard (option)

Cine Loop Up to 1024 frames

Gain 0-100dB

TGC 8 segment

Scanning Depth Up to 110mm

Dynamic Range 0-160dB

Focus 4

Magnification 2.0-10

Probe Connector 1

Language Chinese/English

Matching Printer Laser/Vedio/Inkjet/Therma l printer

Peripheral Port USB, VGA, DICOM3.0, RS232, PAL-D, VCR

Blood Flow Image B, CW, C(=CFM), D(=PW)

Normal Measurement Distance, Area, Angle, Volume, Trace, Diam red(diameter stenosis), Area red(area stenosis), Cross curve, Parallel lines M General: ET, HR, Vel, Dis D General: ET, HR, Vel, ACC, Common, Trace

Professional Measurement Abdominal, Cardiology, Urology, Vascular, Early Obstetric, Later Obstetric, General, MSK, Pelvis Small organs(right/left thyroid)

Combination of Digital Ultrasonic Technology The multi-core intel processor

The wideband digital beam forming

The multi beam parallel processing

Trapezoid Imaging

Accurate blood flow imaging

Intelligence speckle suppression

Wide view imaging

Intelligence screen capture

One touch optimization

2 - Standard Configuration

Main system unit, 3.5MHz Convex probe, 7.5 MHz Linear Probe, Image storage unit, Specialist report, Image processing optimization, User manual and disc 3 - Optional Items

Backup battery, 3D+4D, Biopsy Bracket, USB disk 4 - Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency ) 7.5 MHz Linear Probe (3.5-14MHz variable frequency ) 7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency) 7.5 MHz Rectal Probe(80 elements)

3D/4D Probe

Cardiac Probe 6 - Advanced Technologies

PC platform

One Touch Optimizer

Tissue Harmonic Imaging

3D Imaging Reconstruction

DICOM 3.0 Packaging & Delivery

Packaging Details: Aluminum Case+Box Package

Net Weight: 7.5kg

Gross Weight: 10kg

Package Size: 460*380*200mm

Delivery Time: 5-10 working days Warranty

Two years for main unit (One year warranty for probes) Please let us know your specific request.

We would like to recommend you the most suitable model based on your information.

Company Contact:

• Posted By: Sichuan Canyearn Medical Equipment Co., Ltd.

• Phone: +862888432768

• Address: NO.286,Donghang Road,Longquan District, Chengdu , Sichuan , China

• Email:

• Business Description: Established in 2005, Sichuan Canyearn Medical Equipment Co., Ltd has continued to enjoy remarkable growth, thanks for its progressive product line and a professional team engaged in the research, management, production, and marketing.

  Canyearn has developed over twenty types of B-model ultrasonic diagnostic apparatuses, the technical indicators of which reach the standard of GB10152, ISO2000 and CE, etc.
