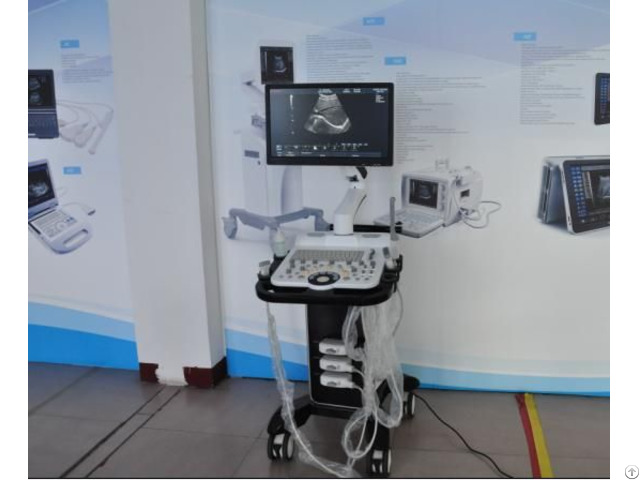

Canyearn C90 Full Digital Trolley Color Doppler Ultrasound Scanner - China

1 - Main Features

Operationg Syetem PC Windows platform

Monitor 15.6 inch LED high-resolution monitor with rotatable arm

Keyboard Back-lit Silicone Keyboard

Scanning Mode B, M, C, D

Dynamic Range 0-150dB

Cine Loop Up to 1024 frames

Gain 0-100dB

TGC 8 segment

Scanning Depth Up to 360mm

Magnification ×1.5 - ×5.0

Probe Connector 3

Language Chinese/English

Matching Printer Laser/Vedio/Inkjet/Therma l printer

Peripheral Port USB, VGA, DICOM, RS232

Blood Flow Image B, CW, C(=CFM), PD

Normal Measurement Distance, Area, Angle, Volume, Trace, Diam red(diameter stenosis), Area red(area stenosis), Cross curve, Parallel lines M General: ET, HR, Vel, Dis D General: ET, HR, Vel, ACC, Common, Trace

Professional Measurement Abdominal, Cardiology, Urology, Vascular, Early Obstetric, Later Obstetric, General, MSK, Pelvis Small organs(right/left thyroid)

Combination of Digital Ultrasonic Technology The multi-core intel processor

The wideband digital beam forming

The multi beam parallel processing

Trapezoid Imaging

Accurate blood flow imaging

Intelligence speckle suppression

Wide view imaging

Intelligence screen capture

One touch optimization

2 - Standard Configuration

Main system unit, 3.5MHz Convex probe, 7.5 MHz Linear Probe, Image storage unit, Specialist report, Image processing optimization, User manual and disc 3 - Optional Items

3D+4D, Biopsy Bracket, USB disk 4 - Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency ) 7.5 MHz Linear Probe (3.5-14MHz variable frequency ) 7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency) 7.5 MHz Rectal Probe(80 elements)

3D/4D Probe

Cardiac Probe 6 - Advanced Technologies

PC platform

Tissue Harmonic Imaging

3D/4D Imaging Reconstruction

DICOM 3.0 Packaging & Delivery

Packaging Details: Wooden Box Package

Net Weight: 70kg

Gross Weight: 79kg

Package Size: 1044*644*1245mm

Delivery Time: 5-10 working days Warranty

Two years for main unit (One year warranty for probes)

Company Contact:

• Posted By: Sichuan Canyearn Medical Equipment Co., Ltd.

• Phone: +862888432768

• Address: NO.286,Donghang Road,Longquan District, Chengdu , Sichuan , China

• Email:

• Business Description: Established in 2005, Sichuan Canyearn Medical Equipment Co., Ltd has continued to enjoy remarkable growth, thanks for its progressive product line and a professional team engaged in the research, management, production, and marketing.

  Canyearn has developed over twenty types of B-model ultrasonic diagnostic apparatuses, the technical indicators of which reach the standard of GB10152, ISO2000 and CE, etc.
