Techstar Nucleic Acid Automatic Extraction System Yc701 Throughput 12 - China

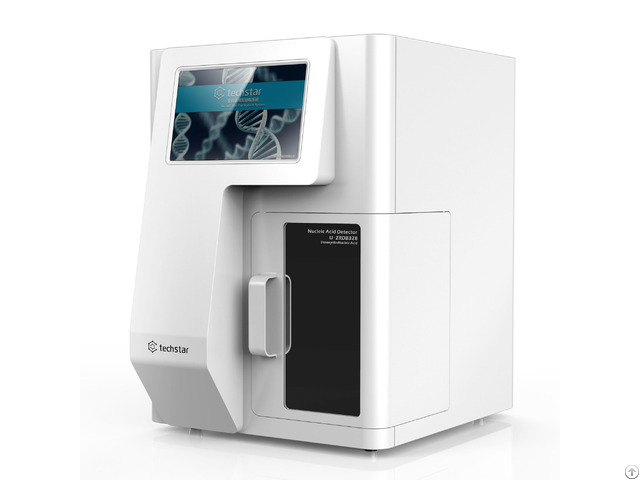

Techstar Nucleic Acid Automatic Extraction System YC701 roduct Introduction With the latest isolation method of nucleic acid transferred by magnetic rods and preloaded magnetic bead-based extraction reagent, the YC701 Nucleic Acid Automatic Extraction System can process 1-12 samples and automatically isolate nucleic acids from various samples such as blood, cells, viruses, etc.

The magnetic beads are adsorbed, transferred and released by the special magnetic rod, so as to realize the fully automated purification of nucleic acid.

Instrument Parameters 1 - Product name: Nucleic acid automatic extraction system

2 - Model: YC701

3 - Certification: ISO9001, ISO13485, CE

4 - Throughput: 12 samples per run

5 - Consumables: 8-well reagent tube + magnetic rod sleeve

6 - Nucleic acid extraction time: 25-35 minutes

7 - Temperature control precision: 0.5 ℃

8 - Temperature control accuracy: ±1.5℃

9 - Heating range: Ambient temperature ~95℃

10 - Nucleic acid extraction purity: 1.8≤OD260/OD280≤2.0

11 - Inter-well purification variation: CV＜3%

12 - Magnetic beads recovery: ≥98%

13 - Touch screen size: 7 inch colour touch screen

14 - Disinfection/decontaminat ion method: UV

15 - Input power: AC 100-240v, 3.5-1.8A, 50/60Hz

16 - Weight: 17±1 kg

18 - Size: 350mm*250mm*380mm Techstar Magnetic Bead-Based Nucleic Acid (DNA/RNA) Extraction Kit Product Instroduction The kit is suitable for YC701 Nucleic Acid Automatic Extraction System for extraction genomic DNA/RNA of pathogenic microorganisms from samples such as serum, plasma, cultured cells, saliva, alveolar lavage fluid, nasopharyngeal aspirates and swabs.

1 - Product No: SC902

2 - Packing specification: 50 tests/kit

3 - Transportation condition: Room temperature

4 - Preservation condition: Room temperature or 2-8 ℃ for long-term preservation

5 - Period of validity: 12 months

6 - Applicable instrument: Techstar YC701 Nucleic Acid Automatic Extraction System

Company Contact:

• Posted By: Wuxi Techstar Technology Co., Ltd.

• Phone: 86-510-68518058

• Address: O. 2 Factory Builing, No. 117 Meiyu Road, Meicun Town,, Wuxi , Jiangsu , China

• Email:

• Website: http://www.techstarbio.com

• Business Description: Techstar is ISO9001 and ISO13485 certified company.

  We manufacture medical and lab equipments like Nucleic Acid extraction system (extractor and kits), SARS-CoV-2 Antigen test kit, Centrifuge, Mini metal bath, Biobank management system etc.

  Our products have passed CE tests and sold to more than 30 countries in the world.
