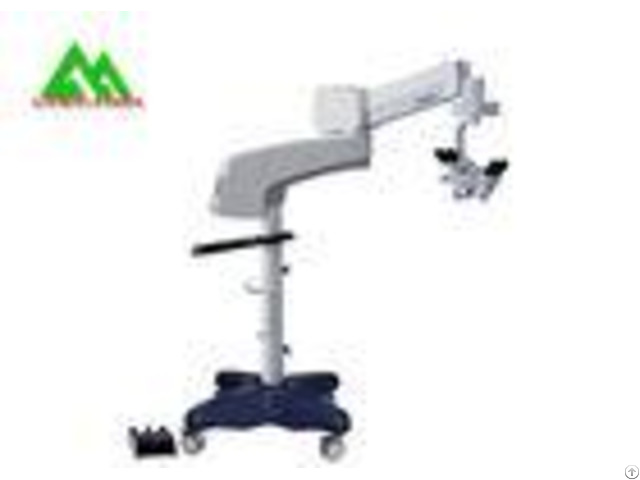

Hospital Ophthalmic Surgical Microscope For Operating With Adjustable Slit Width - China

YZ20T9 Hospital Ophthalmic Equipment Operation Microscope - - - - Features | 1 .

Advanced apochromatic technology and unique optical balanced technology effectively improves the binocular visual fusions, strengthenes in third dimension and reduces surgeons tireness during operations.

2 .

Fine focusing knob is under the bottom of assistant binocular.

The observation of the assistants microscope can be finely focused independently of the main microscope to avoid different observation from surgeons.

3 .

20oblique illumination can also be used as slit illumination.

Slit width is continuously adjustable.

4 .

For ophthalmic use | - - - - - - - - Specification | Eyepiece Magnification: 12.5/18B | Objective Lens: f=200 | Working Distance: 190mm | Magnifications for Main Microscope: 4, 6, 10, 16, 25 | Magnifications for Assistant Microscope: 6, 10, 14 | Diameter of Field: 58mm, 38mm, 23mm, 14mm, 9mm | Diopter Adjustment: 7D | Pupil Distance: 50mm~75mm | Maximal Resolution: 119 LP/mm | Focusing Range for Assistant Microscope: 30mm | Illumination Source: 12V/100W, Cold Reflection Halogen | Bulb for Medical Use Illumination Type: 6+0coaxial illumination of cold light source and 20 Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable | Coaxial Illumination: 50000lx | Reaching Radius of Arm: 1240mm | Adjustable Vertical Range: 850mm~1350mm | Fine Focusing Speed and Range: 2mm/s, 50mm | Speed for X/Y and Range: 2mm/s, 50mm50mm | Input Voltage: AC220V22V/50Hz1Hz, AC110V 11V/60Hz1Hz: | Fuse : AC250V T4.0A, AC125V T8.0A | Electrical Safety Standard: Executive standard : GB9706.1-2007, | Class I Packing Volume: 0.786m3, 5cartons | Total Weight : 213kg | - - - - Our Advantage : 1: For all your inquires about us or our products, we will reply you in detail within 24 hours.

2: We own professional team have professional attitude to recommend products and services.

3: One year free warranty, after it is still providing after-sales service .

4: We offer OEM services, Can print your own logo on the products .

5: We have very experienced engineers, can help you better use our products .
