Kernel Cold Laser 8000a Hair Loss Therapy - China

Effective, Coherent Lasers KN-8000A Hair Loss Therapy

Only lasers produce coherent light, meaning their light waves are aligned and traveling in synchronicity.

Laser light is needed to penetrate the scalp at a depth of 3 – 5 mm and reach the base of a hair follicle.

No other light source (i.e. – LEDs) can achieve this.

By treating the base of hair follicles, our proprietary cold laser technology ensures the mitochondria of hair cells is stimulated.

The mitochondria then produce cell energy that is harnessed by hair follicles.

The Power of Red Light KN-8000A Hair Loss Therapy

Penetrating a treatment area at the appropriate depth with subsequent energy absorption is crucial for the success of Laser Phototherapy (LPT).

Different wavelengths of light will result in distinct laser energies, which enter human tissue at various depths.

However, hair follicles can only absorb coherent laser light at a wavelength of 678 ± 8 nanometers (nm).

The Theradome’s 80 proprietary lasers harness the power of red light at an optimized wavelength of 678 nm, which is ideal for clinical strength hair rejuvenation.

Optimal Energy Dosage Just like a medicine dose, a high quality LPT device should ensure hair is treated with the correct energy dosage – otherwise treatment will be ineffective.

According to the Swedish Laser Medical Society, delivering an optimal energy density to the scalp during treatment will trigger proper cellular response of hair follicles for hair restoration.

The Theradome LH80 PRO laser helmet strictly adheres by these guidelines, hence ensuring strong therapeutic effects that improve the density, health, and overall quality of your hair while accelerating its growth.

Maximum Therapy with Minimal Time With our potent coherent laser light, our 678-nm wavelength optimized for hair growth, our ideal energy density and our full-coverage scalp design, the Theradome LH80 PRO is fully armed to rejuvenate your hair.

A treatment time of 1200 seconds, or 20 minutes, will ensure laser light reaches the base of your hair follicles with the required energy dosage.

Anything less than 20 minutes will fall short of an optimal energy density, which will in consequence not reach the base of a hair follicle and fail to induce stimulation.

Technical specification Intended Use: Applicable to seborrheic alopecia, alopecia areata treatment (tentative)

Applicable places

Suitable for hospital dermatology, medical beauty department

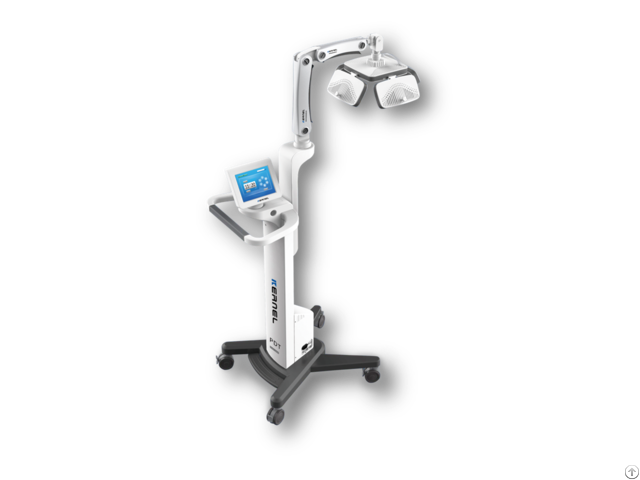

Structure Trolley Outer dimension

Machine: 570mm×620mm× 1245mm(length×width×hei ght)

Treatment head: Developed dimension : 488mm×453mm×65mm(lengt h×width×height) Inside diameter: 225mm×225mm×12 0mm(length×width×height ) Cantilever: 70cm;Up and down distance: 145cm-99cm;

Package dimension(length×width× height mm)

Wooden case: 740mm×650mm×1160mm Carton: 1030mm×660mm×540 mm

Weight N.

W: 26.5kg G.

W: 53kg

Safe level: I

Working mode Continues working

Voltage AC 100-240V 50Hz/60Hz±2%

Power

100VA

Working condition

Temp: 5~40℃

Transportation and storage

Temp: -40~55℃

Humidity: ≤85%

Humidity: ≤95%

Pressure: 700~1060hpa

Pressure: 500~1060hpa

Display mode

8” LCD color touching screen

Working mode

Continues working or pulse working

Irradiation area

935cm2±10cm2

Work distance

4cm±1cm

Light source

650nm Semiconductor laser

Output Wavelength

Laser LD 650nm±10nm

Classification

3R Laser Product (tentative)

Single Power/Diode

4~5mW

QTY of laser diodes

424pieces

Total output light power

≤2120mW(= 5mW x 424)

Timer function

Set in the range of 0min~60min(tentative), Only minute can be set.

Pulse rate

1Hz~10Hz optional

Rotation angle of light source

180°

Features

l The light source is designed according to head’s characters.

The treatment head can be stretched to treat every area of scalp.

l Matrix arrangement of laser light dots output balanced luminous energy.

l Light source connected to the cantilever by quick install connector of military grade, to achieve treatment head fixing and electrical connection.

More convenient and quicker to change light source.

l Free cantilever design makes the light source stayed in any angle position.

l 8”rotating touch screen design, simple operation without professional training.

l Each panel can be controlled separately according to different treatment area.

l Continued irradiation mode or pulse mode is optional according to requirement of treatment.

l The treatment head have auxiliary display function, easy for doctor to know the time of treatment.

l Working distance control device, user can easy and fast to adjust the appropriate distance.

l Kind voice prompt, make the treatment in a relaxing happy atmosphere.

l Dual Switch key and password protection, avoid being misused.
