Cnc Steel Roofing Sheet Roll Forming Machine For Ppgi 0 3mm 0 8mm Roll Former - China

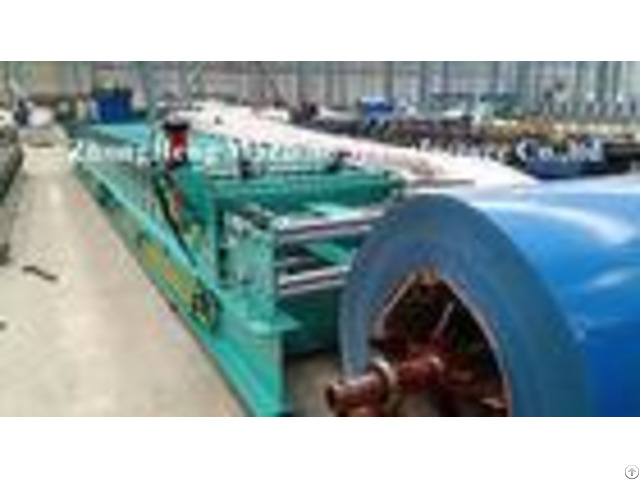

china CNC steel roof sheet roll forming machine for PPGI 0.3mm-0.8mm Machine picture Usgage This kind of machine has the best quality and the best price.

It has accurate measurement and easy operating.

We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding production, installation, debugging and maintenance service to all customers.

- - - - Article No.

| Item Name | Specification | 1 | Width of feeding material | 1200 mm coil sheet | 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet | 3 | Roller station | 8-15 stations | 4 | Shaft Diameter | 70 mm | 5 | Productivity | 8-15 m/min | 6 | Rollers' material | 45# steel forge | 7 | Shaft material | 45# steel | 8 | Weight | 6-8 tons | 9 | length | 9m | 10 | Voltage | 380V 50Hz 3phases | 11 | Control | PLC | 12 | Decoiler | 5 tons | 13 | Motor | 7.5 kw | 14 | Driving way | Chain transmission | 15 | Chain size | 1 inch | 16 | Cutting system | Hydraulic cutter | - - - - A.

General - - - - Suitable Material | Q235 or equivalent | Material Thickness | 0.25-0.8 mm | Material Width | 914, 1000, 1200, 1220 or 1250, as per the drawing | Dimension | About 5.9*1.3*1.1m(L*W*H), as per the drawing | Working Space | About 15.9*2.8m(L*W), as per the drawing | Length of the Sheet | You can set the length according to your need.

It is controlled by PLC which can ensure the accuracy of 1mm.

| Cutting | Automatically stop and cutting when it comes to the set length.

| - - - - B.

Components Details - - - - Roller Material | High grade 45# steel.

Hard chrome plating, 0.05mm.

| Main Frame | 350# steel.

More stable and no shaking.

| Middle Plate | 16mm.

We use thicker plates to ensure stability of our products.

| Forming Steps | 11-16, according to the drawing.

| Shaft Material | 70 mm, high grade 45# steel.

| Treating process: tempering- finish turning, high rigidity, hard to deform.

| Cutting Blade Material | Cr12, hardness HRC60-62 - | Treating process: heat treatment- plane abrasion- wire electrode cutting.

| - - - - - - - - 3 - The Application | - - - - This type of roofing has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate 4 Advantage - - - - 1 - Professional | 15 years' rich experience! a.

Specialized in roll forming machine since 1998; b.

Keeping improving the quality.

| 2 - Low price | Save your money from every part! a.

Low labor cost; b.

Convenient transportation; c.

Complete supporting industries.

| 3 - PLC | Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

| 4 - OEM / ODM | Customersdesign, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

| 5 - One-Years warranty, whole life service | Keep troubles far away from you! Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

| - - - - 5 package and loadng A.

Need one 40ft container.

B.

Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.

C.

Spare parts in carton box.
