High Speed Roof Tile Roofing Sheet Roll Forming Machine With Plc Control System - China

HIgh speed Roof Tile / Roofing Sheet Roll Forming Machine with PLC control system - - - - | Brand Name | ZHONGHENG | Commodity | roofing sheet bending roll forming machine | Main Forming Machine | 0.5-0.7mm thickness, PPGI/PPGL G250-350Mpa Forming rollers (45# steel material ) One set rollers to form one profiles as drawing1 - After forming cutting system(1 sets cutter blade) Forming speed: 0-15m/min Motor power: AC7.5.0KW 1.2inch single line chains to transmission.

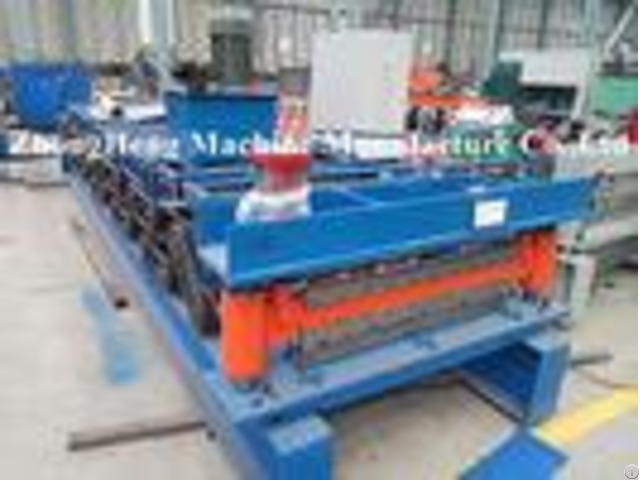

| Control system | PLC: Siemens /Panasonic Electrical components: Siemens/Schneider Encoder: Omron AC-3-380V/50Hz | 5 tons de-coiler | Manual de-coiler Expanding by manual Inner of diameter: 460-520mm | Tool box | 1set | Out table | 2sets | Colour | By Client's Requested | Delivery Time | 20~60 days after T/T prepayment or L/C date | Price Term | FOB, CIF, CFR | Port of Loading | Any port in China | Payment | L/C at sight T/T 30% in advance, 70% balance before shipped | - - - - Machine pictures (3).

Technical Detail A.

General - - - - Suitable Material | Q235 or equivalent | Material Thickness | 0.25-0.8 mm | Material Width | 914, 1000, 1200, 1220 or 1250, as per the drawing | Dimension | About 5.9*1.3*1.1m(L*W*H), as per the drawing | Working Space | About 15.9*2.8m(L*W), as per the drawing | Length of the Sheet | You can set the length according to your need.

It is controlled by PLC which can ensure the accuracy of 1mm.

| Cutting | Automatically stop and cutting when it comes to the set length.

| - - - - B.

Components Details - - - - Roller Material | High grade 45# steel.

Hard chrome plating, 0.05mm.

| Main Frame | 350# steel.

More stable and no shaking.

| Middle Plate | 16mm.

We use thicker plates to ensure stability of our products.

| Forming Steps | 11-16, according to the drawing.

| Shaft Material | 70 mm, high grade 45# steel.

| Treating process: tempering- finish turning, high rigidity, hard to deform.

| Cutting Blade Material | Cr12, hardness HRC60-62 - | Treating process: heat treatment- plane abrasion- wire electrode cutting.

| - - - - - - - - 3 - The Application | - - - - This type of roofing has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate 4 Advantage - - - - 1 - Professional | 15 years' rich experience! a.

Specialized in roll forming machine since 1998; b.

Keeping improving the quality.

| 2 - Low price | Save your money from every part! a.

Low labor cost; b.

Convenient transportation; c.

Complete supporting industries.

| 3 - PLC | Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

| 4 - OEM / ODM | Customersdesign, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

| 5 - One-Years warranty, whole life service | Keep troubles far away from you! Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

| - - - - 5 package and loadng A.

Need one 40ft container.

B.

Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.

C.

Spare parts in carton box.
