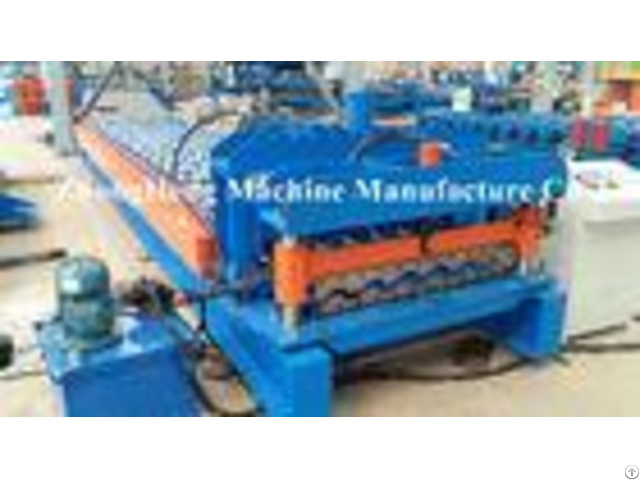

Roofing Sheet Roof Tile Roll Forming Machine With Hydraulic Cutting System - China

Roofing Sheet / Roof Tile Roll Forming Machine With Hydraulic Cutting System 1 - Description: This shape of tile panel is big wave panel, with high top, its usually used in hot area such as Africa, India.

It isHigh temperature resistant.

2 - Competitive Advantage: # We have more than 20 years experience in produce roll forming machine, # We have a group of professional engineers, # We have a lot of customer's feedback data, # We can design the machine and product according to your request.

3 - Flowchart 4 - Specification - - - - NO.

| ITEM | PARAMETER | NOTE | 1 - | Suitable material | Type | Pre-paintedsheet, Galvanizedsheet Galvanized Aluminum | | Width(mm) | 1000mm | | Thickness(mm) | 0.3-0.8mm | | Yieldstress(mm) | Q235 | | 2 - | Product specifications | Detailastheattachedfile | Length | Anylength | | 3 - | Power requirement | Type | 380v/3ph/50hz | Motorbrandshanghai Lichao | MainMotorpower | 5.5kw | Cutterpower | 4kw | 4 - | Formingspeed(m/min) | 2-3m/min | Notincludethetime ofcutting | 5 - | ManualDecoiler (Optional) | Type | Manual | | Maxcapacity | 5t | | SuitablecoilOD(MM) | 1000 | | Suitablecoil ID(MM) | 508 | | 6 - | Formingstand | 18 | Dependonactualdesign | 7 - | Thicknessofstructure | 16mm | | 8 - | Formingshaftdiameter(mm) | 70solid | | 9 - | Typeofcutting | Rollformedandlength-setcu tting | | 10 - | Controlsystem | PanasonicPLCandinverter | | 11 - | Installdimension(dependon thefinaldesign) | 9.3m1.5m1.2m | Withoutpanellength | 12 - | Totalweight(Approx) | 5.5T | Dependonfinaldesign | - - - - 5 - Applications: - - - - | Our machine | Other company 's machine | Influence of the machine | Machine's base | High strength H350 / H400 steel.

machine through milling macine after welding | H270 steel mark, after welding use manual polish | keep base in the same horizontal line, ensureproduct standard | Roller material | High grade No.

45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated | Normal No.

20 steel with Simple polished and have no coating | Roller will have longeruse life and ensure theproducts have same size, no nick on the surface.

| Side wall | Use high strength16mm thickness steel panel mark | Use 12 mm thickness steel panel mark | Ensure machine harder todeform, keep the productaccurate and stable | Active shaft material | High grade solid No.

45 carbon steel, Shaft diameter is 72mm.

surface CNC polish treatmen | Normal No.

45 steel with no surface treatment | Improve the integratedmechanic feature of theshaft.

and ensure theshaft stability keep product standard | Electrical elements | PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China | All the elements are made in china | Machine become moreaccurate and more stable | Cutter blade | Cr12 mould steel with quenched treatment | Normal high strength steel without quenched treatment | Stable the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life, ensure product standard | - - - -
