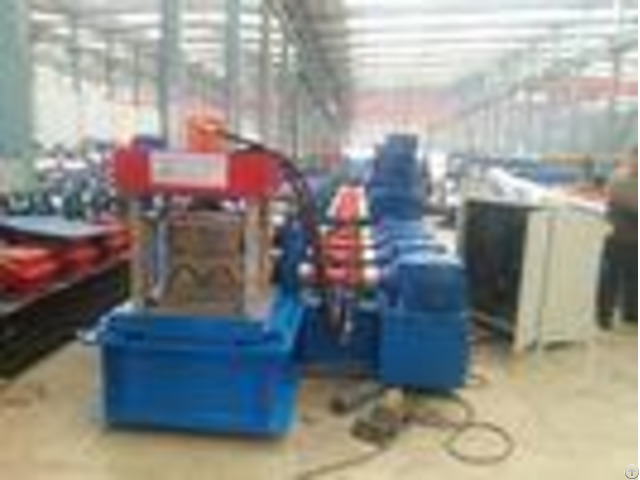

W Profile Gearbox Control Fast Way Gardrail Roll Forming Machine With Auto Cutting For 3 5mm Thickne - China
price: check with company for price
W profile Gearbox control fast way gardrail with auto cutting for 3.5mm thickness HR sheet Specifications - - - - Item: | Specification: | Notes: | 1 - Informationofrawmateria l | Suitablematerial: | Galvanizedcoil | | Width: | 475mm | | Thickness: | 2.5-2.8mm | | Yieldstrength: | Q235A | | 2 - Productionspecification | Detailedasthefile | | 3 - Powerrequirement: | Mainpower: | 22kwtwosets | Withinventor (normalstandard) | Cutterpower: | 15kw(pressure: 25mpa) 3pcscutter | Speedofmachine: | 10-15meters/min | | 5 - Hydraulicde-coiler: | Loading: | 5tons | Mainpower: 3kw | Innerdiameter | 508mm | Type: | Automatictype | 6 - Machinespecification: | Structure: | 400Ibeam | Transformmethod: Chainstransform | Rollstations: | 20rollstations (with7pcsrollersfor levelingdiameter: 80mm) | Splintthickness: | 22mm | Diameterofshaft: | 110mm, | Materialofshaft: | Forged45#steel | Typeofcutting: | Sawcutting | Materialofroller: | GCr15withheattreatment: HRC58-62 | Sizesofmachine: | 15.5*1.0*1.5meters | Materialofpunchingmold: | Cr12, hydraulicpre-punching | Sizesofchain: | 2.0inch | - - - - Application The fianl products are High speed road guard rail, standard model (two waves and three waves are both popular).
Its usually used in Govenment project.
Automatically punching and cutting, easy to operate and meatainess.
Description: This machine is hot sale all over the world.
The easy installation is impressed by customers.
Two waves shape and three waves shape is optional.
And the transform method is incuding chains and gearbox.
Competitive Advantage: 1).
Take the EUROPEAN Quality Standard; 2).
Choose the Best Material and Components.
3).
Over 30-Year-Experienced Experts and Top International Sales to Care Your Needs.
4).
Offer The Highest Quality but The Best Price in Prevailing Market.
5).
Customize for You.
It usually match with the U section post supporter, the hole should be cross for the screw for installation.
Company Contact:
- Posted By: ZhongHeng Machine Manufacture Co.,limited
- Phone: 86-317-33711731
- Address: Shengli Road Cangzhou Hebei province China, Cangzhou , Hebei , China
- Email:
Published date: April 10, 2018
- Business Description: Master international trade Co., ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines, material of building.
