Respiratory Care Product Ultrasonic Nebulizer Machine - Taiwan

INSTRUCTION

An Aerosol therapy of asthma nebulizer atomizes liquid (normal saline), and sprays it into the user’s airway in order to keep the respiratory tract unobstructed, moisten the respiratory tract, and dilute sputum.

APPLICATION

For adult and pediatric patients suffering from Asthma or Chronic Obstructive Pulmonary Disease (COPD) such as; emphysema and chronic bronchitis, or other respiratory diseases that are characterized by obstruction to air flow, or simply used in throat moisturizing.

*NOTE* This is a single patient device.

Do not allow multiple patients to use the same nebulizer.

Feature

Extremely Quiet

Low Power Consumption

Ergonomic handle

One button operation

4 microliter particle size

Mesh-Ultrasonic Technology

Colorful Appearance

1 - It is designed for infant, child and adult who has Asthma, COPD (Chronic Obstructive Pulmonary Disease), or other respiratory disorders.

2 - This nebulizer atomizes liquid (normal saline), and sprays it into the user’s airway in order to keep the respiratory tract unobstructed, moisten respiratory tract, and dilute sputum

3 - The mini size nebulizer that only weights 46 g (excluding battery), and the dimensions are 26 mm ( L ) x 35 mm ( W ) x 98 mm ( H ).

4 - It does not need to replace the filter and medicine cups, which can save a lot of cost on the replacement parts.

SPECIFICATION

Method of Operation

Ultrasonic (Atomize by Micromesh)

Size

Approx.

26 mm ( L ) x 35 mm ( W ) x 98 mm ( H )

Weight

Approx.

46g (Excluding battery)

Power

3V DC (Two “AAA”1.5V alkaline batteries)

Power consumption

Approx.

0.6W

Vibrating Frequency

Approx.

117kHz

Spray rate

> 0.25mL/min

Particle Size

MMAD < 5 μm

capacity

Approx.

8 mL Maximum

Approx.

1 mL Minimum

battery life

4 days if used daily for 15 minutes.

Epected Service Life

Nebulizer main unit: 1 Year

Medication cup: 3 Months

Operating Conditions

10 ℃ ~ 40℃(50 ℉ ~ 104 ℉), 30 ~ 85% R.H.

Storage / Transportation

Conditions

-20 ℃ ~ 70℃(-4 ℉ ~ 158 ℉), <= 85% R.H.

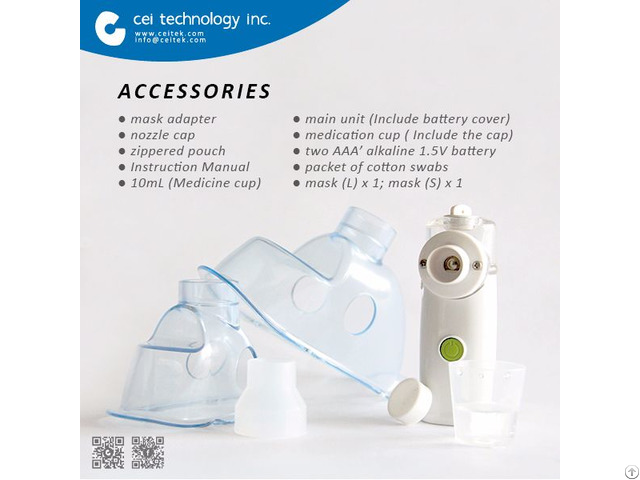

Accessory

main unit (Include battery cover) x1

medication cup x1

mask (L) x 1

mask (S) x 1

10mL (Medicine cup) x 1

‘AAA’ alkaline 1.5V Battery x 2

zippered pouch x 1

Instruction Manual x 1

DIFFRENCES BETWEEN ULTRASONIC & COMPRESSOR NEBULIZER

Ultrasonic Nebulizer is a device used to deliver medications intended for ther treatment of respiratory disorder.

The latest ultrasound technology was proven to be a more effective way to transport medication deep into paitent's lungs than that of piston nebulizer and compressor nebulizer.

Differ from conventional compressor nebulizer shooting compressed air at liquid medicine into mist form, ultrasonic nebulizer provides a more effective and dependable way to inhale medicine by high frequency vibrations transforming liquid form into a fine mist.

Which way is considered to be far more quickly than compressor one.

The other advantage of ultrasonic nebulizer is that owing to the way it works is more quickly to send the prescription into patient's lung.

It thus reducing the time of the symptoms in emergency situation.

To sum up, we are proud to tell every each of our customers that CE-333 ultrasonic mesh nebulizer is a machine which is not produced to just meet the standard in the mesh nebulizer machine market but exceed all of our customers' expectation.
