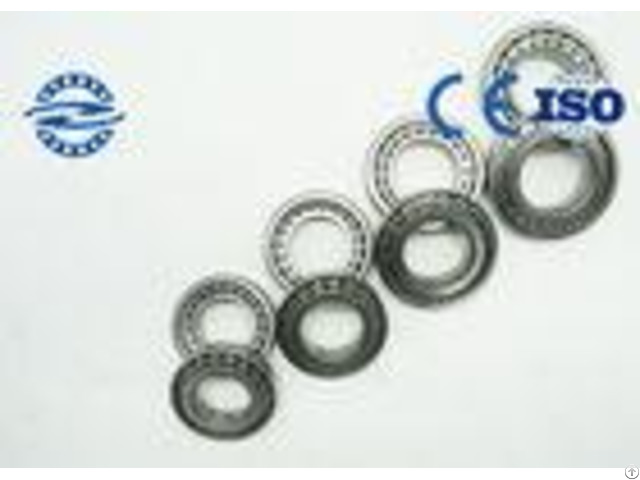

High Precision Car Engine Bearings Single Row Tapered Roller Bearing 30224 - China

Car Engines Bearing Tapered roller bearing 30224 120 mm * 215 mm * 40 mm 1 .

Product description - - - - Name | Taper roller bearing | Type | 30224 | Mass | 6.27 kg | Delivery Time | Samples: 1-3 days Orders: 5-10 days | Payment Terms | A: 100% TT B: 30% T/T in advance .

70% before shipment or against copy of B/L C.

Western union and PayPal | Package | 1 - Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; 2 - Plastic bag + Kraft paper + carton + plywood pallets; 3 - Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets;According to customer's requirements | Brand | SKF, NSK, NTN, TIMKEN, KOYO, IKO, OEM accept | Feature | High precision, low noise, high speed, long life, high reliability, heavy load and high temperature resistance.

| Application | Paper making machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of | - - - - 1 .

The tapered roller bearing is assembled through a rolling element .

Guided by the sidewall of an inner ring, it can bear radial load and axial load in one direction .

2 .

As a kind of thrust bearing, this product is mostly applied in the car differential, front wheel, rear wheel, machine tool, axle, construction machinery, various vehicle transmission systems, the hoisting and conveying machinery, and more 3 .

production range Inner diameter : 15 mm ~ 1560 mm Outer diameter : 42 mm ~ 1800 mm Height : 14 mm ~ 460 mm - - - - - - - - 2 .

Other model - - - - Single-Row Tapered Roller Bearings (metric) | Bearing No.

| Boundary dimensions (mm) | Basic load ratings (KN) | | | d | D | B | C | T | R min | rmin | Cr(KN) | Cor(KN) | Weidht(KG) | 30224 | 120 | 215 | 40 | 34 | 43.5 | 3 | 2.5 | 483.3 | 337.4 | 6.2 | 30226 | 130 | 230 | 40 | 34 | 43.75 | 4 | 3 | 521.4 | 366 | 6.94 | 30302 | 15 | 42 | 13 | 11 | 14.25 | 1 | 1 | 21.6 | 22.9 | 0.944 | 30303 | 17 | 47 | 14 | 12 | 15.25 | 1 | 1 | 27.6 | 28.3 | 0.129 | 30304 | 20 | 52 | 15 | 13 | 16.25 | 1.5 | 1.5 | 33.2 | 33.1 | 0.165 | 30305 | 25 | 62 | 17 | 15 | 18.25 | 1.5 | 1.5 | 48.1 | 46.9 | 0.263 | 30306 | 30 | 72 | 19 | 16 | 20.15 | 1.5 | 1.5 | 63.1 | 59 | 0.387 | 30307 | 35 | 80 | 21 | 18 | 22.75 | 2 | 1.5 | 82.6 | 73.5 | 0.515 | 30308 | 40 | 90 | 23 | 20 | 25.25 | 2 | 1.5 | 107.6 | 90.9 | 0.747 | 30309 | 45 | 100 | 25 | 22 | 27.25 | 2 | 1.5 | 129.8 | 108.9 | 0.984 | 30310 | 50 | 110 | 27 | 23 | 29.25 | 2.5 | 2 | 157.1 | 130.1 | 1.28 | 30311 | 55 | 120 | 29 | 25 | 31.5 | 2.5 | 2 | 187.6 | 153.3 | 1.63 | 30312 | 60 | 130 | 31 | 26 | 33.5 | 3 | 2.5 | 210 | 171.4 | 1.99 | 30313 | 65 | 140 | 33 | 28 | 36 | 3 | 2.5 | 241.7 | 195 | 2.44 | 30314 | 70 | 150 | 35 | 30 | 38 | 3 | 2.5 | 271.7 | 219 | 2.98 | 30315 | 75 | 160 | 37 | 31 | 40 | 3 | 2.5 | 318.8 | 252.8 | 3.75 | 30316 | 80 | 170 | 39 | 33 | 42.5 | 3 | 2.5 | 352.5 | 278.8 | 4.27 | 30317 | 85 | 180 | 41 | 34 | 44.5 | 4 | 3 | 388.2 | 304.9 | 4.98 | - - - - 3 .

FAQ Q : Can you accept OEM or ODM ? A : Yes, of course.

logo is also acceptable .

Q : How is quality controlled ? A : Quality is the key ! Our QC team and engineer team works through all the process from an order placed to shipped .

Q : Can I come for a visit ? A : You are welcome to visit our factories, office and showroom ! Please contact our reception and we will help you to make a schedule .

4 - Packaging 1 - Single box packing, then in carton then in Pallet.

2 - Standard export packing.

3 - According customer demand.

5 .

application Tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries.
