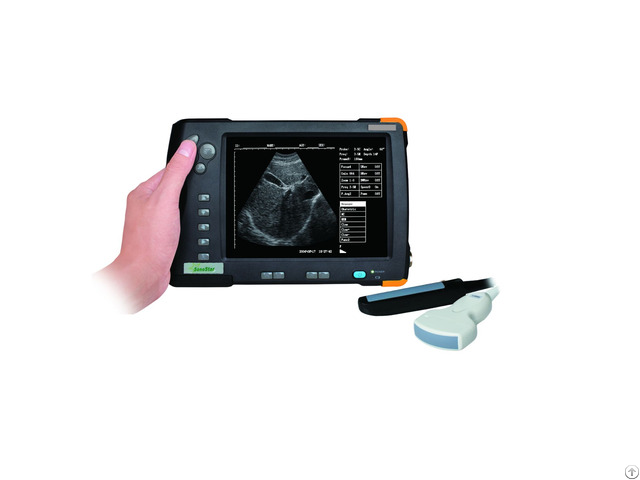

Veterinary Palm Ultrasound Scanner - China

Feature: -7 inch TFT screen -Pretty and very light -Full digital imaging technology, crystal-clear Image -Can work with backfat probe -Low power consumption -2G Large volume storage image -Built-in battery -Solid shell and structure -Waterproof(Optional) -High Cost-effective Specifications:

Display size: 7 inch TFT

Scanning manner: Electronic convex array, electronic linear array

Working frequency: 2.0MHz~10MHz

Display mode: B, B+B, B+M, M, 4B

Scanning range: Convex array 60°~150°

Amplification factor：1.0, 1.2, 1.5, 2.0

Gain control: 8 segments TGC and overall gain can be adjusted respectively

Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc

Image gray-scale: 256 levels Scanning line number: 512 lines/frame

Frame rate: 30 frames/second

Digital scanning conversion: 512×512×8 bits

Memory capacity: ≥2GB

Conventional measurements: distance, perimeter, area, volume

Obstetric measurement: horses, cattle, sheep, dogs, cats obstetric measurement

Report function: auto make report

Battery capacity: 3000mAH/7.4V, can work more than 2 hours

Display screen: 7" TFT

Output interface: USB port, video.

Overall size: 216mm×147mm×27mm

Total weight: 950g(with battery)

Waterproof: IP65(optional)
