In Stock Astm 4340 Steel Has Good Weldability Performance - China

Welding of ASTM 4340 Steel ASTM 4340 Steel has good weldability.

It can be easily gas welded or arc welded, but electrodes of the same composition should be used.

Since 4340 alloy steel is air hardened, welded parts should be annealed or normalized and tempered soon after welding.

The high hardness of 4340 alloy steel requires that the material be welded in the annealed or tempered condition and then heat treated to resist martensite formation and cold cracking.

However, as in motor shaft applications, 4340 steel is usually welded using high preheat in a low hydrogen process in the quenched and tempered condition.

Preheating or interpass heating of the weld metal and heat affected zone is recommended.

Hydrogen control is also essential to prevent weld cracking.

Extremely clean vacuum melted steel is the preferred choice for welding.

Preheat and interpass temperature °C (°F) range for indication Section thickness Steel ≤ 13 mm (0.5 in) 13-25 mm (0.5-1 in) 25-50 mm (1-2 in) 4340 290-345 (550-650) 315-370 (600-700) 315-370 (600-700) Data apply to low hydrogen welding processes and low hydrogen filler metals.

Typical Transverse Tensile Properties of Selected Low Alloy Steel Quenched and Tempered ARC Weld JointsSteel Welding ProcessThickness, mm (in)Filter MetalTempering Temperature, °C (°F)Elongation at 50 mm (2 in) of Weld Joint, %Approximate Tensile Strength of Parent Metal, MPa (ksi)Tensile Strength, MPa (ksi)Yield Strength, MPa (ksi)4340Gas Metal Arc Welding (GMAW)25.4 (1)4340510 (950)1307 (189.5)1251 (181.5)111310 (190).

What Songshun Provide

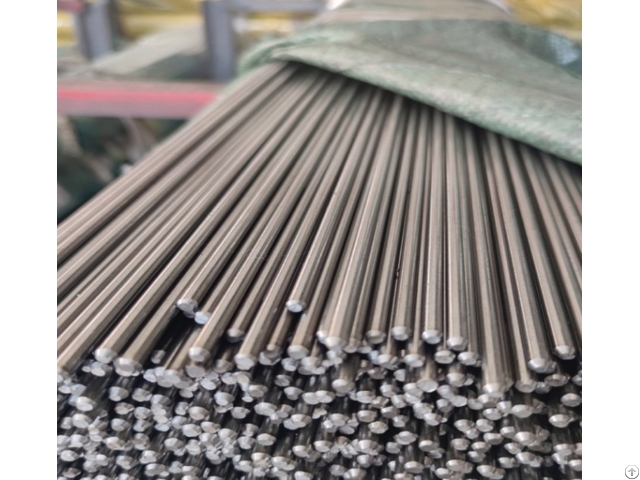

Our main products are round and flat bars for alloy steel, tool steel, stainless steel, spring steel, bearing steel and etc.

In those years we offers a wide range of high quality steel for engineering machinery, mold tooling, cutting tools manufacturing industry and etc.

Songshun Company Website:

https: //songshunsteel.

com/

songshunsteel20240115

Company Contact:

• Posted By: Dongguan Songshun Mould Steel Co., Ltd.

• Phone: 076985475596

• Address: 1st Floor, No. 1, Dongda Fourth Street, Shatou Community, Chang'an Town, Dongguan , Guangdong , China

• Email:

• Website: https://songshunsteel.com/

• Business Description: Established in 2009,Songshun Steel supplies a wide range of carbon, alloy and tool steel products, including high speed tool steel, cold work tool steel, hot work tool steel, plastic mould steel, engineering steel and machine structural steel etc.

  After more than 10 years development and growing, Songshun Steel becomes one comprehensive special steel factory, stockist and exporter.

  Combined with experienced exporting team and professional technical knowledge, Songshun Steel offers both technical advice and support, as well as global professional steel solution and service.

  Due to satisfactory reliable quality and professional service, Songshun expands our market worldwide, such as Colombia, Chile, Spain, Turkey, Iran, Vietnam, Malaysia ,UAE, Canada, Brazil, Mexico and so on.

  Songshun specialized in Special Steel for almost 20 years.

  We can supply mold steel, high speed steel, alloy steel, free cutting steel and etc.
