100mm Diameter Wedge Wire Screen Heat Resistant For Geothermal Oil Well Pipe - China

100mm Diameter Wedge Wire Screen Heat - Resistant For Geothermal Oil Well Pipe Item Code: OD100FOTI0.2MM Brief introduction OD100FOTI0.2MM Johnson Screen Pipe Oil Wedge Wire Well Screen 100mm Diameter Geothermal Oil Well Pipeis a kind of wedge wire screen used in Geothermal Oil Filtering industry.

The opening slot size is 0.4mm.

And the slot size can be produced as clients requests.

1 - Material: SS304 We use normally 304 and 316L S.

S Material which were all imported from world famous supplier.

Complete specifications for material to adapt to customer demand.

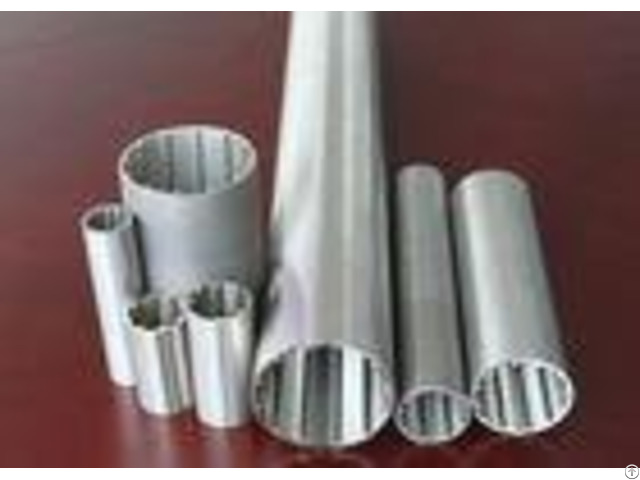

2 - Construction Our wedge wire screen were welded by profile wire and support wire.

We can make the screens in different shape according to the different usage.

Like tube and plate etc.

The advantages for such construction.

We use wedge-shaped profile wire in order to make the slot v-shaped.

It can stop the impurities very well.

The wedge wire was welded on the support wire well-proportioned and have perfect roundness.

Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.

After work for a period of time, the filter can be back flush.

It can use for many times.

Filtering direction from outside to inside (FOTI) 3 - Type of profile wire and Support rod, Here for item OD100FOTI0.2MM, We use 12s profile and Q25 support rod.

- - - - | - - - - Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | - - - - | - - - - - - - - | - - - - Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | - - - - | - - - - Technical data for more available OD and filtering rate.

- - - - No.

| (mm)TYPE | OD (mm) | ID (mm) | Support wire Number | Filter direction | 1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI | 2 | SRD 33 | 33 | 24 | 8 | FOTI | 3 | SRD 37 | 37 | 28 | 8 | FOTI | 4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 11 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - -
