Ceramic Fiber Cloth - China

Introduction

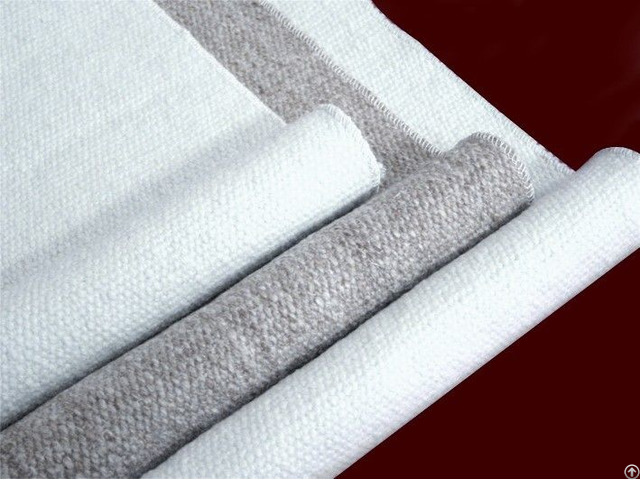

Ceramic Fiber Cloth is produced by high quality refractory ceramic fiber and woven from yarn.

It can be used for high temperature applications up to1050°C.

The cloth is reinforced with fiberglass filament, and optional SUS304 wire (Inconel/alloy steel wire).

Or even short working temperature could be reached to 1260°C.

It has good resistance to acid corrosion, resistant aluminum, zinc and other molten metal erosion.

Parameter table

Type Data

Color White

Max working temp 1260°C

Fiber diameter 3~5μm

Heat shrinkage(1232°C, 24h) 3.5%

Thermal conductivity(538°C, 8pcf) 0.130w/mk

Al2O3 45~48%

Fe2O3 0.7~1.2%

CaO&NaCl 0.43%

Shot < 8.5%

Breakdown voltage 5kv/mm

Resistance 5x10 10Ω

Moisture content < 2%

Organic fiber content < 20%



Continuous working temp: 1050°C (1900°F);

Maximum working temp: 1260°C (2300°F);

Ceramic fiber cloth

Type Thickness

(mm) Width

(mm) Weight

(g/m2) Weave Reinforcement Working Temperature

( °C)

CC2G 2 1000 1000 Plain Fiberglass Filament 650

CC3G 3 1000 1400 Plain

CC5G 5 1000 2300 Twill

CC6G 6 1000 2600 Twill

CC2S 2 1000 1100 Plain SUS304 wire

(Stainless steel wire) 1050

CC3S 3 1000 1500 Plain

CC5S 5 1000 2400 Twill

Roll length: CC5G, CC6G and CC5S is 20m/roll, other is 30m/roll

Type Thickness

(in) Width

(in) Weight

(oz/m2) Weave Reinforcement Working Temperature

( °F )

CC2G 1/16"(0.08) 39.4 33.0 Plain E-glass Filament 1200

CC3G 3/32"(0.12) 39.4 49.4 Plain

CC5G 5/32"(0.20) 39.4 81.1 Twill

CC6G 3/16"(0.24) 39.4 91.7 Twill

CC2S 1/16"(0.08) 39.4 38.8 Plain Inconel/alloy steel wire 1900

CC3S 3/32"(0.12) 39.4 52.9 Plain

CC5S 5/32"(0.20) 39.4 84.7 Twill

Roll length: CC5G, CC6G and CC5S is 21.9yard/roll, other is 33yard/roll

Other thickness and width will be available on request.

Application

 High temperature insulation of kilns, pipes and vessels;

 Sealing of doors, valves, flanges;

 Raw material of fire doors and fire shutters;

 High temperature furnace curtain;

 Insulation of engine and instrument;

 Fireproof cable coverings and high temperature fireproof materials;

 Covering insulation cloth;

 Flue liner and other high temperature filtration;

 Sound-absorbing and other used to replace asbestos applications;

Typical applications of ceramic fiber cloth include: expansion joints, safety blankets, curtains, welding blankets, protective and insulating covers, shields, gaskets, cable or pipe wrapping, etc.

It has been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.
