Corrosion Resistant 316l Johnson Wedge Wire Screen 33mm For Liquid Filtration - China

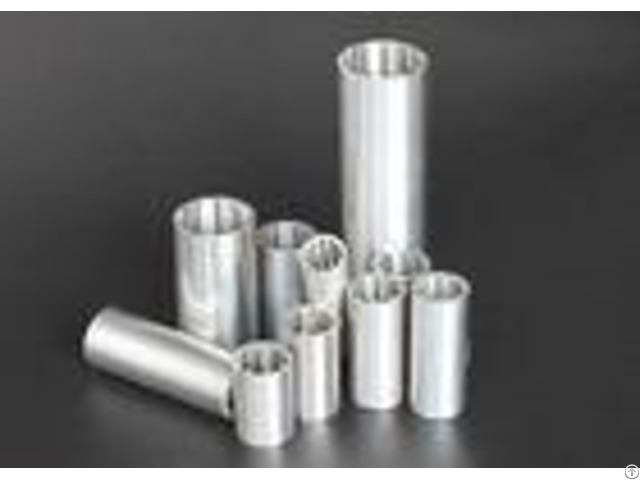

Corrosion resistant 316L johnson wedge wire screen 33mm for Liquid Filtration Item Code: OD33FOTI0.04MM-316L Advantages For Schroeder Technology Slot Tubes - - - - 1 - Roundness | Perfect roundness with smooth surface | 2 - Slot size | 20 microns in minimum | 3 - Delivery time | 10-15 Fast delivery time | 4 - Brand | SLOT-CHINA | 5 - Origin | China, low cost | 6 - Quality | Top quality | 7 - Sample | Free sample available | - - - - Brief introduction OD33FOTI0.04MM-316L stainless steelslot tubeis a high precision filtering screen.

The diameter is 33mm.

The material is Stainless steel 316L .

The filtration slotis 40microns.

Unit length within 2500mm.

Stainless steel slot tube has high strength, stiffness and load-bearing capacity.

It is more widely used in filtration system in many industries.

Specification of OD33FOTI0.04MM-316L stainless steelslot tube.

Stainless steel slot tube are our main products.

manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods.

Each intersecting point of these wire is fusion welded.

For the requirements, the wedge wire screen can be produced in a number of material grades, starting with simple stainless steel right up to highly corrosion resistant alloys.

The structure of the stainless steelslot tube Our slot tubes were welded by profile wire and support wire.

We can make the screens in different shape according to the different usage.

Like tube and plate etc - - - - 1 | We use wedge-shaped profile wire in order to make the slot v-shaped.

It can stop the impurities very well.

| 2 | The wedge wire was welded on the support wire well-proportioned and have perfect roundness.

Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities | 3 | After work for a period of time, the filter can be back flush.

It can use for many times.

Filtering direction from outside to inside (FOTI) | - - - - Featuresof our stainless Steel Slot tube # profile, wedge shape.

# support rod.

# strong welding.

# everage slot sizes.

# perfect roundness.

Applications The stainless steel slot tubeis commonly used for filtration and separation in : 1 .

Water well and oil/gas well 2 .

water and waste water treatment 3 .

Water supply 4 .

PetroChemical 5 .

Food and beverage 6 .

Pulp and paper 7 .

Sugar and Starch Delivery time By Courier: 4-7 Working days by special offer By Air: 15 Working days at appointed airport By Sea: 30-35 Working days at appointed port - - - - Minimum Order Quantity: | 5 meters | Price: | negotiation | Payment Terms: | L/C at sight, T/T or western Union | Supply Ability: | 3, 000 meters per month | Delivery Time: | 15-25 working days after received your payment | Packaging Details: | Packed in carton firstly, and then reinforced with wooden case for outer packing | - - - -
