Cylindrical 37mm Wedge Wire Screen High Resistance To Vibration 6 97 Percent Filtering Rate - China

Cylindrical 37mm Wedge Wire Screen High Resistance To Vibration 6.97% Filtering Rate Item Code: OD37FOTI0.075MM

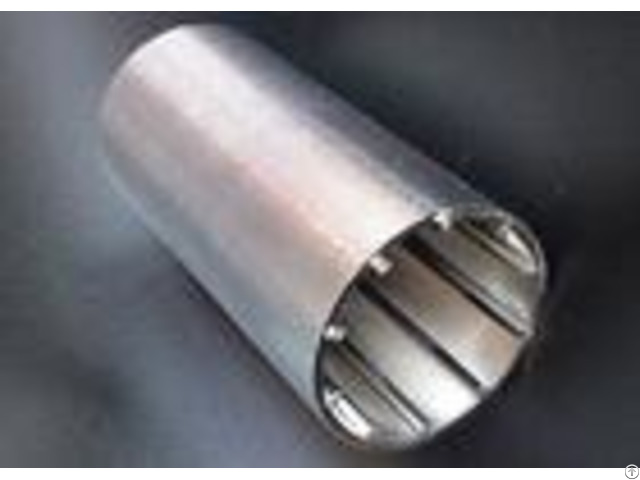

Product Description37mm Diameter Made In China Hot Sale Stainless Steel Wedge Wire Wcreen High Precision Johnson Screen Filter are made of wedge wire screen, Stainless steel, The diameter is 37mm .

It is suitable in most plants for petro chemical hydro treating.

The end fittings can be many different kinds.

NPT, BSP and so on.

- - - -

Specifications: | OD37FOTI0.075MM Wedge Wire Screen | Quality control system | Factory own control | Function: | liquid filtering / liquid solid separation /Petro Chemical Hydro Treating | Efficiency: | High | Open area: | 6.97% | Cleaning way | Back flushing, easy to clean | Materail: | Wedge/ vee shape stainless steel wire(304/ 316L) | Profile wire: | wedge shape, Width(mm): 0.751.001.50Height(mm): 1.502.003.00 - | Support rods: | square shape, Width(mm): 2.00; Height(mm): 2.303.00; | Diameter(mm): | 25.40mm ( Less than 220mm) | Length(mm): | 1000mm, (Less than 1500mm long) | End connection: | Commen fittings, NPT, BSP end fittings, calculate price seperately | Packaging | 1 step: PVC net

2 step: Wooden case | Delivery | 15-30 Days after deposit | Priceand payment terms | payment: | L/C, T/T, Western Union | Port: | SHANGHAI, NINGBO, HANGZHOU | - - - - More available Sizes:

Diameter: 1" to 10".

Slot openings: From 0.02mm up.

Lengths: Max to 2.5 meters.

End: Welding-ring or threaded ends.

- - - - No.

| (mm)TYPE | OD

(mm) | ID

(mm) | Support wire Number | Filter direction | 1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI | 2 | SRD 33 | 33 | 24 | 8 | FOTI | 3 | SRD 37 | 37 | 28 | 8 | FOTI | 4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 11 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - - Advantages:

1 - Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.

2 - Low cost operation.

3 - Reduce the abrasion of the pump.

4 - Extend the life span of wells, low-carbon, Galvanized or stainless steel construction

Delivery

By Courier: 4-7 Working days by special offer

By Air: 15 Working days at appointed airport

By Sea: 30-35 Working days at appointed port

Why choose us

1 - We are manufacture.

2 - We have advanced proccessing machine.

3 - We can make slot screen tube perfect round

4 - We can do the slot 0.02mm minimumly.

5 - Professional sales team can give you feedback within 24 hours.
