Introduction

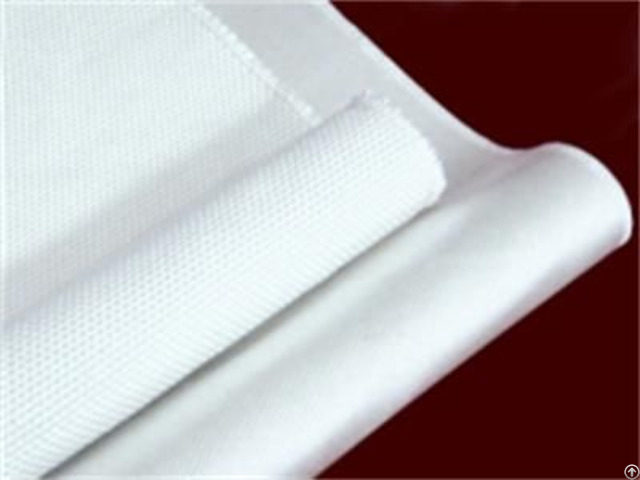

Fiberglass Cloth is produced by high quality fiberglass fiber and woven from yarn.

It can be used for different environment according to the pre-texturized or not.

The working temperature is 550°C (1020°F), and has good electrical insulation properties, thermal insulation properties and mechanical properties.

Specifications

Type Thickness

(mm) Width

(mm) Weight

(g/m2) Weave Texturized Roll Length

(m/roll)

GC0.6 0.6 1000 610 Plain Yes 100

GC0.8 0.8 1000 680 Plain Yes 50

GC1.2 1.2 1000 850 Plain Yes 50

GC1.4 1.4 1000 1000 Plain Yes 50

GC1.7 1.7 1000 1200 Plain Yes 30

GC2.0 2.0 1000 1300 Plain Yes 30

GC3.0 3.0 1000 2000 Twill Yes 30

GC200 0.19 1270 204 Plain No 200

GC430 0.43 1000 430 Twill No 100

GC650 0.6 1000 650 Satin No 100

Note：The above thickness, width and weight data are there in the actual production range of±10%

Main Performance

 Could be used in the environment of -70°C~1000°C and can be instantaneous high temperature resistance;

 Resistance to ozone, oxidation, light and weathering;

 High strength, high modulus, low shrinkage, no deformation;

 Good thermal insulation;

 There is still some residual strength when operated over the working temp;

 Resistance to corrosion;

Application

 Reinforcing material for demanding personal security and mechanical properties;

 Basic cloth for fire curtain, welding curtain and coating cloth;

 The boiler insulation and pipe bandaging;

 Used in boat building and repair;
