Foti 0 75mm Water Well Wedge Wire Screen Cylinders With Handle Cl Od120 - China
price: check with company for price

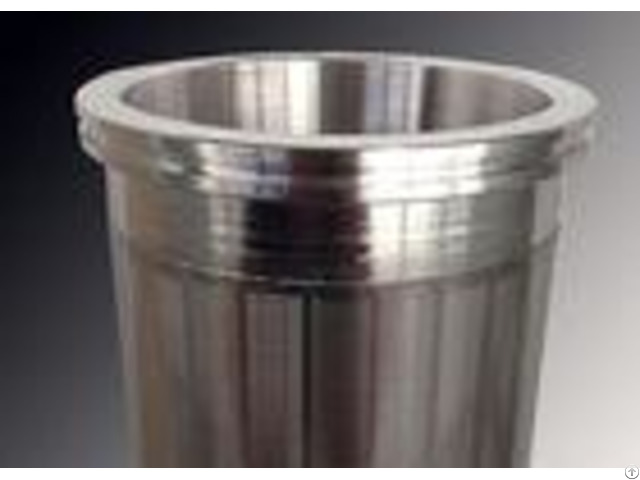

FOTI 0.75MM Water Well Wedge Wire Screen Cylinders With Handle CL- OD120 Item code: CL-OD120FOTI0.75MM Brief introduction ofWedge wire screen Cylinders Wedge wire screen Cylinders are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods.
Each intersecting point of these wires is fusion welded, with an unique welding process.
This spacing gives passage for water to enter.
The entire process is completed on fully computerized machines.
The pitch of winding gives different spacing between two adjacent turns of wire.
Wedge wire screen Cylindershave the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.
Wedge wire screen Cylinders has a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer) A uniform and efficient well development due to the continuous slot opening.
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.
Wedge wire screen Cylinders Applications: - De-watering; - Separating; - Filtering; - Straining; - Sizing; - Drying; - Media retention - Water intake; Specificationof Wedge wire screen Cylinders - - - - Product Specifications | Material: | Stainless steel | 304/316L | Feature and advantage : | Wedge wire screen Cylinders | Quality control system: | Factory own control | Function: | liquid filtering / liquid solid separation | Efficiency: | High | Open area: | large open area | Cleaning way | Back flush, easy to clean | Other feature: | Perfect roundness | 20 micron filtering ability in minimum | Long life | easy to instal | wide range of sizes are available | OEM serivce: | YES | Specifications: | Wedge wire screen Cylinders | Application: | oil well, gas well, water well, food processing, etc.
| Materail: | wedge/ vee shape stainless steel wire(304/ 316L) | Profile wire: | wedge shape, Width(mm): 0.751.001.50Height(mm): 1.502.003.00 - | Support rods: | square shape, Width(mm): 2.00; Height(mm): 2.303.00; | Diameter(mm): | From 25.40 to 220mm | Length(mm): | under 2500mm | Filtering slot size(m): | 20m, 25m, 30m, 32m, 35m, 40m, 45m.
75m.
100m.
200m.
.
300m and much more large sizes, other sizes available as per request | End connection: | Beveled end, threaded coupling or flanged | Packaging | 1 step: PE FOAM/ Buble paper 2 step: Wooden case 3 step: Straps | Delivery | 30 Days after deposit | Priceand payment terms | payment: | L/C, T/T, Western Union | Port: | SHANGHAI, NINGBO, HANGZHOU | MOQ: | 1 PCS | Sample: | available | - - - - QC of Wedge wire screen Cylinders Payment terms of Wedge wire screen Cylinders 1 - Paypal, WesternUnion, others.
2 - 30% Advanced T/T + 70% balance against B/L Copy 3 - L/C at sight 4 - Other payment terms as request
Company Contact:
- Posted By: Hangzhou Schroeder Technology Co.limited
- Phone: 86-571-89165607
- Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China
- Email:
- Website: https://www.wedge-wirescreen.com
Published date: April 3, 2018
- Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.
We learned advanced production experiences , our company has advanced production technology and innovative design .
