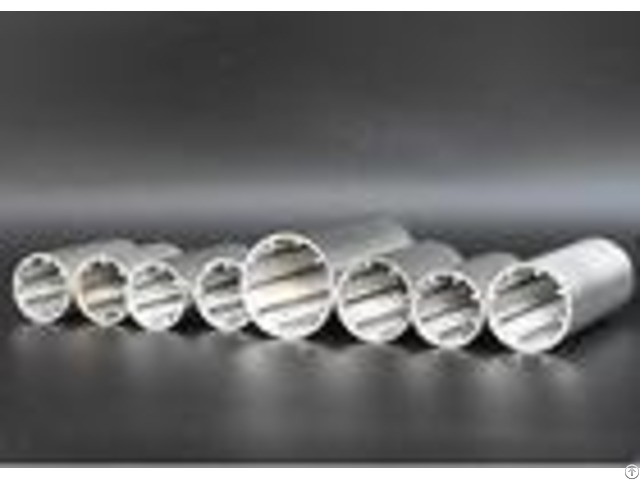

High Strength Liquid Filter Wire Wrapped Screen 33 Diameter With Filtration Rate 40m - China
price: check with company for price
High Strength Liquid Filter Wire Wrapped Screen 33 Diameter With Filtration Rate 40m Item Code: OD33FOTI0.04MM - - - - Product name: | SS304 Wire Wrapped Screen | Profile wire | 12SR 1*2mm | Usage: | Liquid Filter | Wire shape | WEDGE | Type | Filter Elements | Support rod | Q25 2*3mm | Material: | 304 Stainless steel | Rof shape | square | Filter Rating: | 40 micron | Filtering direction | FOTI | Unit Length | with in 2500mm | whatsapp: | 008613758144618 | OD | 33mm | | | - - - - - - - - Minimum Order Quantity: | 5 meters | Price: | negotiation | Payment Terms: | L/C at sight, T/T or western Union | Supply Ability: | 3, 000 meters per month | Delivery Time: | 10-15 working days after received your payment | Packaging Details: | Packed in carton firstly, and then reinforced with wooden case for outer packing | - - - - Brief Introduction OD33FOTI0.04MM SS304 Wire Wrapped Screenis a high precision screening filter for the structural elements of the metal mesh .
The filtrition rate is 40micron.
More widely used in industry screening, beverage filtration, dehydration, and other operating Desliming .
It has high strength, stiffness and load-bearing capacity, can make various shapes of the rigid screening filter.
Specification of OD33FOTI0.04MM Wire Wrapped Screen33 Diameter 1 - Material: SS304 We use normally 304 and 316L S.
S Material which were all imported from world famous supplier.
Complete specifications for material to adapt to customer demand.
2 - Construction Schroeder Technology Johnson screens are welded by profile wire and support wire.
We can make the screens in different shape according to the different usage.
Like tube and plate etc.
3 - Type of profile wire and Support rod, Here for item OD33FOTI0.04MM, We use 12s profile and Q25 support rod.
- - - - | Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | - - - - - - - - | Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | | | | | - - - - 4 - Filtering slot: 40m Opening Rate: 3.8% Filering direction: From Outside To Inside
Company Contact:
- Posted By: Hangzhou Schroeder Technology Co.limited
- Phone: 86-571-89165607
- Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China
- Email:
- Website: https://www.wedge-wirescreen.com
Published date: April 3, 2018
- Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.
We learned advanced production experiences , our company has advanced production technology and innovative design .
