    Q22 Support Rod Looped Wedge Wire Screen With 25 Micron Filtering Slot

    Products Photos Catalog Q22 Rod Looped Wedge Photos Catalog

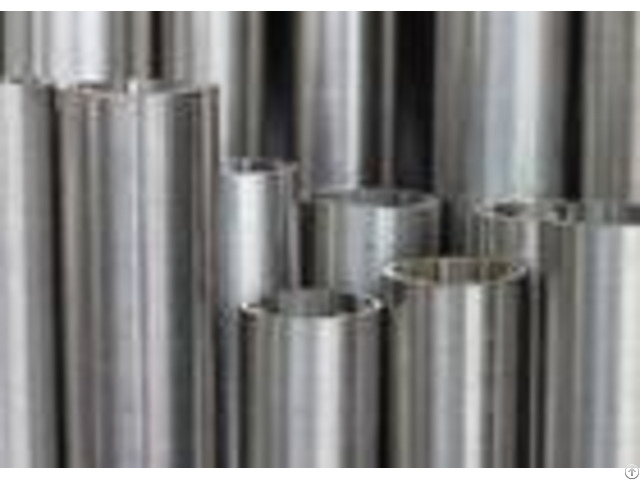

    Q22 Support Rod Looped Wedge Wire Screen With 25 Micron Filtering Slot Item Code: OD25FOTI0.025MM-316L Brief Introduction Wedge wire screen are produced as flat, arch bent, gutter type, cone and cylindrical segments.

    They are characterized by precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.

    They are used in settling tank type, cumulative, basket, self-cleaning and special filters.

    We offer individual fixing solutions.

    Slot - From 0, 025mm Wire standard shaped wires as below sheet, other on customers request.

    Material - AISI304 or 316L, other on customers request.

    Dimensions -Depending on purpose and demanded output.

    Diameter range - From 25mm - 120mm Length range - With in 2500mm - - - - | Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | - - - - - - - - | Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | | | | | - - - - Specification of 316L Stainless Steel Looped Wedge Wire Screen 25 Micron Filtering Slot 1 - Material: 316L We use normally 304 and 316L S.

    S Material which were all imported from world famous supplier.

    Complete specifications for material to adapt to customer demand.

    2 - Structure and shape Screens are welded by profile wire and support wire.

    Here for this item, the shape is OD25mm Tublar shape.

    3 - Filtering slot: 25m Opening Rate: 2.44% Filering direction: From Outside To Inside 4 - Standard Package For Bulk Orders.

    Technical data of more sizes of wedge wire screen.

    - - - - No.

    | (mm)TYPE | OD (mm) | ID (mm) | Support wire Number | Filter direction | 1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI | 2 | SRD 33 | 33 | 24 | 8 | FOTI | 3 | SRD 37 | 37 | 28 | 8 | FOTI | 4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 11 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - - Remarks: 1 - Make high precision wedge wire filterwith different material according to user requirements.

    2 - High precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.


    Company Contact:


    • Phone: 86-571-89165607

    • Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China

    • Email: Email


    Published date: April 3, 2018

    • Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.

      We learned advanced production experiences , our company has advanced production technology and innovative design .
