Round Automatic Backwashing Wire Mesh Cylinder Scraper Cleaned With 0 04mm Slot - China

price: check with company for price

Round Automatic Backwashing Wire Mesh Cylinder Scraper Cleaned With 0 04mm Slot

Products Photos Catalog Backwashing Wire Mesh Photos Catalog

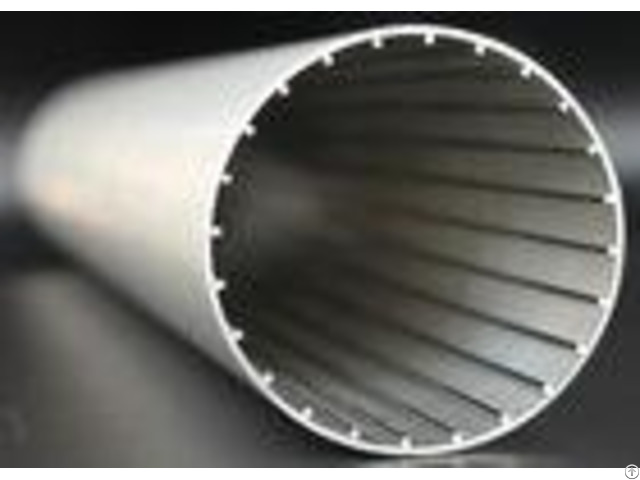

Round Automatic Backwashing Wire Mesh Cylinder Scraper Cleaned With 0.04mm Slot Item code: OD85FITO-0.04MM Brief introduction Flow inside out Wire Mesh Cylinderis a wedge wire screen Cylinderwhich filtering direction is from inside to outside.

Many filter system use such filter Cylinder.

As picture shows below: The support rods are inside, And the Profile wire are outside.

The vertex of the wedge shape wire are outwards.

The flow is from inside out.

The the solid things are leave inside of the Cylinder.

After working for a period of time, the Cylinder can be back flushing to clean .

So machine also has scraper to clean it.

And, It can use for many times.

Specifications for structure: The Wire Mesh Cylinderare mainly made of wedge wire screen profile and square shape support rods, Specification as pictures as below: - - - - | Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | | Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | - - - - Advantage: 1 - We are manufacutre with high technology

2 - Products are made of import material.

3 - Everage slot and strong welding.

4 - High efficiancy.

5 - Automatic backwashing and scraper cleaned Applications: food processing, waste water filtration, pulp and paper as well as mineral processing applications Date Sheet for more available sizes: - - - - No.

| (mm)TYPE | OD (mm) | ID (mm) | Support wire Number | Filter direction | 1 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 2 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 3 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 4 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 5 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 6 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 7 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 8 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - - In Hot Selling All The World : Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait; Poland ; Holland ; Bulgaria ; Macedonia ; The USA ; Australian ; Brazil ; Romanian ; Saudi Arabia; Iran ; Thailand ; Pakistan ;South Africa;


Company Contact:


  • Phone: 86-571-89165607

  • Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China

  • Email: Email


Published date: April 3, 2018

  • Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.

    We learned advanced production experiences , our company has advanced production technology and innovative design .
