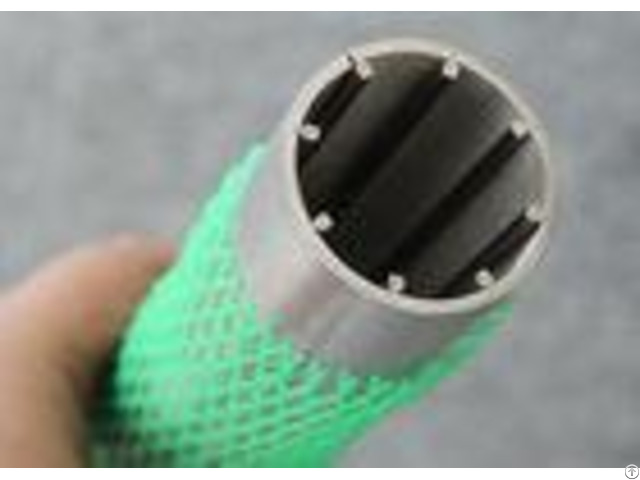

Silver Y Strainers Well Screen Pipe High Precision Filtering Element Foti Fito - China

price: check with company for price

Silver Y Strainers Well Screen Pipe High Precision FIltering Element FOTI / FITO Item Code: OD40FOTI0.025MM Brief introduction Wedge wire screen, V-Wire Wound Screens offer many advantages including a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.

It allows a uniform and efficient well development due to the continuous slot opening.

Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

These screens have the features of easy back-washing, last long, safety and reliability as well as low comprehensive cost.

Technical data for more available OD and filtering rate Beside OD40mm.

- - - - No.

| (mm)TYPE | OD (mm) | ID (mm) | Support wire Number | Filter direction | 1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI | 2 | SRD 33 | 33 | 24 | 8 | FOTI | 3 | SRD 37 | 37 | 28 | 8 | FOTI | 4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 11 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - - Remarks: 1 - Make high precision wedge wire screenwith different material according to user requirements.

2 - high precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.

Type of profile wire and Support rod, Here for item OD40FOTI0.025MM, We use 12s profile and Q25 support rod.

- - - - | - - - - Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | - - - - | - - - - - - - - | - - - - Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | - - - - | - - - - Filtering direction from outside to inside (FOTI), Filtering slot is 0.04mm, 40 micron.


Company Contact:


  • Phone: 86-571-89165607

  • Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China

  • Email: Email


Published date: April 3, 2018

  • Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.

    We learned advanced production experiences , our company has advanced production technology and innovative design .
