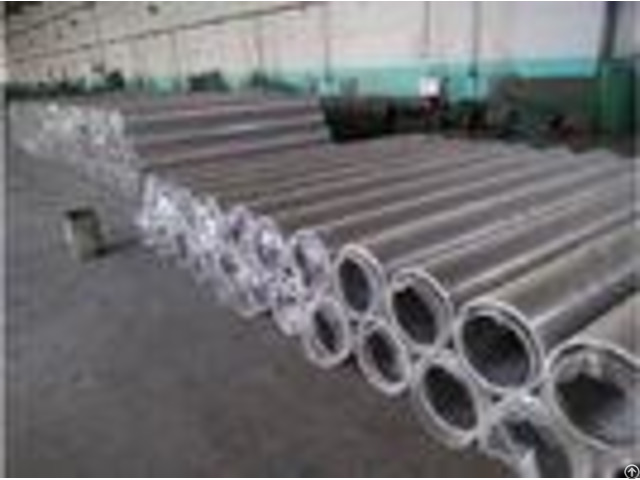

Strong Structure Johnson Type Water Well Screen With Precision Filtration Slot - China

Strong Structure Johnson Type Water Well Screen With Precision Filtration Slot Basic Info # Model NO: wedge wire screen # Usage: Liquid Filter, Solid Filter # Hole Shape: Square # End Connection: Welded Rings, Threaded, Flange # Slot / Gap: 0.05-2mm # Material: Metal # Type: Filter Cylinder # Diameter: 25-180mm # Flow: Foti, Fito # up Length: up to 2.5m # HS Code: 84219990.90 Product Description Main technicla data for reference 1 - Material: Galvanized carbon steel, stainless steel (304, 304L, 316, 316L etc.

) 2 - Diameter: From 25mm to 180mm 3 - Slot Size (mm): 0.02, 0.025, 0.03, 0.04, 0.05, 0.06, 0.10, 0.15, 0.2, 0.25, 0.30-3 or as per customers' requirement 4 - Unit length up to 2.5m.

5 - Open area up to 60% 6 - End Connection: Welding (beveled end), thread coupling(STC, LTC, BTC) or flange 7 - Surface treatment: Galvanized, painted, polish, etc.

8 - Packing: Bubble bag and woven bag, in bundle or unbundle or in wooden cases.

Advantage of filter screen pipe of johnson type: 1 - A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone 2 - A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3 - A uniform and efficient well development due to the continuous slot opening.

4 - Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5 - Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Packing details of this filter screen pipe johnson type: Single with bubble bag and then in wooden case(fumigation certificate).

Each case is clearly Batch number Date of manufacture Material Safe heating & application temperature - - - - Screen Size | Inside Diameter | Outside Diameter | OD of Female Threaded End | in | mm | In | mm | in | mm | In | mm | 2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 | 3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 | 4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 | 5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 | 6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 | - - - - - - - - PROFILE WIRE | | | | | WIDTH(mm) | 1.50 | 1.50 | 1.0 | 0.75 | HEIGHT(mm) | 2.20 | 2.50 | 2.0 | 1.425 | - - - - - - - - SUPPORT ROD | | | WIDTH(mm) | 2 | 2.0 | HEIGHT(mm) | 2.3 | 3.0 | - - - -
