V Wire 25mm Diameter Stainless Steel Slot Tube With 0 075mm Filtering Slot - China
price: check with company for price

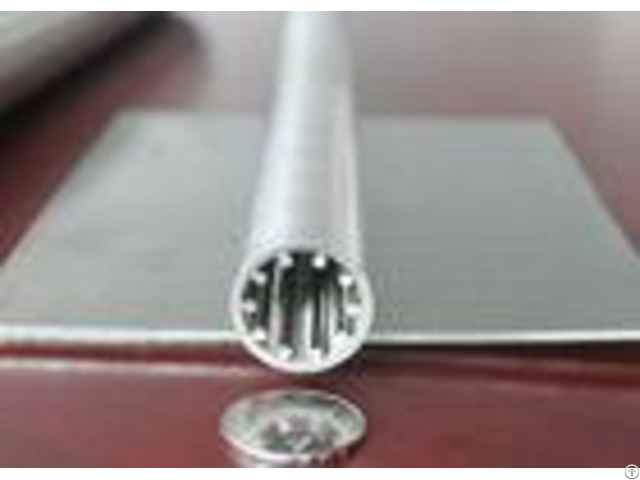

V - wire 25mm Diameter Stainless Steel Slot Tube with 0.075mm Filtering Slot Item code: OD25FOTI0.75MM Breif introduction: Stainless steel slot tubeare welded by profile V-wire and support wires, it is also called Johnson screen.
The features are high ratio filter area because of big opening, vee wire structure are easy for automatic back washing and avoid pipe blocking.
The pressure will reduce when water flow in for greater filter area, avoid the grains of sand flow in the wedge wire tube in the high pressure conditions, so make the pipe life longer.
Between the same length, diameter and slot size, wedge wire pipe is thrice than bridge filter pipes.
Material: Low carbon steel wire, AISI 304, AISI 304L, AISI 316, AISI316L, high quality stainless steel wire.
Application: With the high-precision, our wedge wire as filter elements used in water treatment industry, oil filtration, paper making, refine sugar, we have inside perforated metal and wedge wire tube outside filter.
According to the slotted wedge wire screen catalogue faustenite: AISI 304 (1.4301), AISI 304L (1.4307), AISI 202 (1.473), AISI 316 (1.4401), AISI 316L (1.4404), AISI 316Ti (1.4571), Duplex: 329 LN (1.4462), 439 (1.4410); Specification: - - - -
Diameter of slot tube | 25mm, 28mm, 32mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm, 53mm, 57mm, 58mm, 60mm, 65mm, 68mm, 70mm, 76mm, 80mm, 82mm, 100mm, 108mm, 120mm, 133mm, 159mm, 196mm, 219mm, 240mm, 325mm, 400mm, 450mm, 480mm, 500mm, 550mm, 600mm, 1200mm.
| Slot size | 0.02mm .
0.025mm .
0.03mm .
0.04mm 0.045mm .
0.05mm .
.
0.06mm, 0.08mm, 0.10mm, 0.15mm, 0.20mm, 0.30mm, 0.50mm, 6mm | Length | 20mm to 6000mm | Notes | Coutom shape and specification can be made as your request.
| - - - - The details of profile and support rods: - - - - | Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | - - - - - - - - | Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | | | | | - - - -
Company Contact:
- Posted By: Hangzhou Schroeder Technology Co.limited
- Phone: 86-571-89165607
- Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China
- Email:
- Website: https://www.wedge-wirescreen.com
Published date: April 3, 2018
- Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.
We learned advanced production experiences , our company has advanced production technology and innovative design .
