Aluminum Bar Grating Panels For Architecture And Building Uses - China

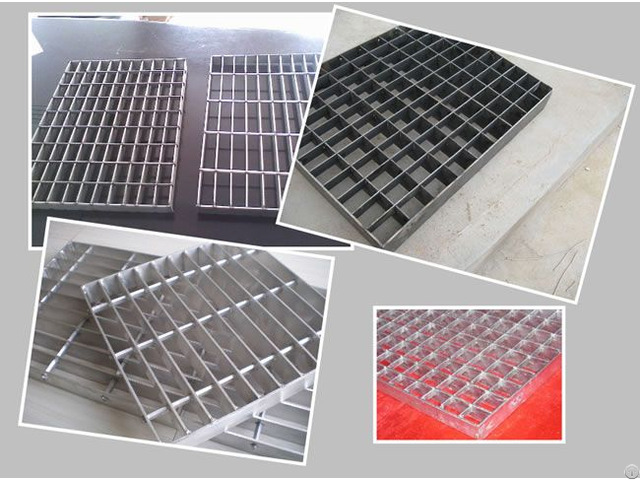

Aluminum bar grating is a non-rusting and light weight metal structure commonly used as walkways, stair treads, access covers and platforms in construction of reservoirs, plants, ships, barges, also used as metal flooring in breweries, bottling plants, food processing and storage facilities, used as architectural mesh panels for facade, sunshade, air vent and metal cladding.

Aluminum grating panels are available in standard or anodized finishes.

Aluminum Grating Type: flat bar grates: plain type, plain I type, serrated type, serrated I type; cross bar grating: round type and square twisted type.

Swaged Rectangular Aluminum Grating - Most Widely Used Aluminum Grating

Swaged rectangular bar grate provides clean, crisp lines and the cross bar is fully locked within the bearing bar, slightly below the top surface.

"SGI" Swaged "I-Bar" Aluminum Grating - High Efficient and Skid Resisting Grating

This type of aluminum grating carries the same load as 3/16” thick rectangular bar type aluminum grating, but weighs slightly less per square foot.

Additionally, the striated top and bottom flanges of the "I" bar provide enhanced skid resistance without the cost of serration.

"SGF" Swaged Flush-Top Aluminum Grating - Design Suitable for Pedestrian Traffic Walking Surface

Manufactured with a unique, extruded cross bar that is flush with the top surface of the bearing bars after swaging, this aluminum grating provides an enhanced walking surface for areas subject to continuous pedestrian traffic.

Aluminum Dovetail Pressure Locked Grating - Architectural Mesh Panels

The deep cross bars of the dovetail gratings are popular for architectural applications, to be used as sun shade panels and decorative infill panels, with the deeper cross bar serving as architectural accent.

Aluminum Bar Grating Products: 6063-T6 Aluminum Bar Grating

Architectural Aluminum Grille Bar Gratings

Aluminum Platform Bar Grating

Swage-Locked Aluminum Bar Grating

Bar Serrated Aluminum Grating

Press Lock Aluminum Grating 6063-T6 Aluminum Bar Grating with Dove Tail

Press Lock/Dove Tail, Smooth Surface

Spacing - 7/16" x 4" Spacing

1" x 3/16" Bearing Bar to Run Parallel to Length

1" x 3/16" Edge Trim Band Grating Set to Cover 125.25" Width x 115" Length Span Supplied at Pieces

36-1/16" Wide x 115" Long

16-13/16" Wide x 115" Long Grating Set to Cover (2 Spans) 91" Width x 119" Length Spans Supplied per Set

36-1/16" Wide x 119" Long

18-9/16" Wide x 119" Long Architectural Aluminum Grille Bar Gratings for Metal Facade and Cladding Panels

Features:

Light weight-easy to install and clean;

Nice appearance-high strength-ventilation and light can pass through;

Material saving-slip-resistant and safe;

Heavy loading and durable

Company Contact:

• Posted By: Kingde Bar Grating Corp

• Phone: 86-534-705736

• Address: 11 Qinghuayuan Road, Dezhou, China, dezhou , China

• Email:

• Website: https://www.bargrating.org

• Business Description: Kingde Bar Grating Corp was founded in 2003, covers an area of 15 acres, it is a joint venture manufacturing and exporting bar grates flooring, covering, decking and decorative panels.

  Our bar grating products are made according to Chinese YB4001-1991, YB / T4001-1998 standard production, with British BS4592-1-1995 and American ANSI / NAAMM (MBG531-88) standards and other international standards.

  The company produces a variety of hot rolling steel lattice panels, cold rolled steel grating, steel grating plug, hot-dip galvanized steel grating, steel grating, alloy grating, composite steel grating, composite steel mesh boards, ladders, stainless steel ladder, aluminum stair treads, ditch covers, and all kinds of metal components and structural parts for flooring and decking.
