Automatically Load Cell Controller For Film Winding Machine Ac 180 260v - China

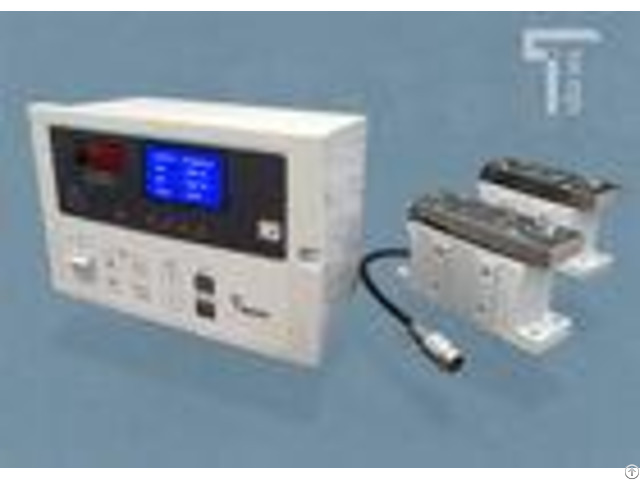

Flim Winding Machine Auto Tension Controller With Tension Loadcell Characters: ST-3600 is a simple but powerful tension controller.

The Guide of its panel operations is as follows: 1 - Button of output on/off switch : switch on the output for outputs between terminals PA-PAN, SA-GND or PB-GND, SB-GND ; switch off the output for "off" on LED display and controller provides no output at all.

2 - Manual/automatic mode switch button : change status between manual and automatic by pressing the button.

3 - Page turning button: turn page of LCD display screen.

4 - Calculus by the algorithm can achieve taper tension control.

5 - STS, STSA tension loadcell for option 6 - Compatible PNP.

NPN type proximity switch.

7 - Panel key quick coil /output memory reset operation 8 - Over-current, overheating protection switching power supply, long-term reliable operation.

- - - - Parameters | Model | ST-3600 | Power Supply | AC 180~260V 50/60HZ | Input | Analog singal | 1 - L+~L-;R+~R-;Left, right tension loadcell signal input STS tension loadcell signal (0~200mv, power supply DC5V) STSA tension loadcell signal(0~15mv;power supply DC5v) | Digital signal | 1 - MC0: Main axle proximity switch speed signal ( proximity switch PNP Type, voltage supply DC24V) 2 - MC1, MC5, MC6: points control signal (24V+high electric control signal) | Output | Main output | PA, PB: Two roads 24V/4A power output directly drive magnetic powder clutch or brake | Auxiliary output | SA, SB: Two roads DC0~10V/0~5V output can drive torque type inverter Synchronously, SA and PA main axle output changes synchronously, SB and PB main axle output changes synchronously.

| Outline size | 246*154*114mm | - - - - Tension Detector installation: 1 - Load produced by film tension should not point to the screw end of tension detector (fasten end), or there will be no or only a very small output signal correspongding to the load.

Solve this problem by giving the detector a good run.

2 - The scrw end of detector should point upwards when it is wall mounted with the same reason as above.

3 - Sometine the film is immediately beneath the reel, and then the load caused by the tension will pull but not press the dector.

In such a case, exchange the detector's positive and negative signal lines connected to the controller's terminal blocks.

4 - Absolutely no violent impact and vibration produced by striking or dropping, or the detector will damage.

5 - Looking into the diagram for more precaution.

Packing(Packaging & Delivery) 1 - Neutral carton packing 2 - One piece in one carton box 3 - Normally one controller with two loadcells, this is easy for shipping.

4 - One unit shipping 5 - Lead time: within 3 days We supply tension control system and web guiding system for about 20 years already.

Cooperate with Wuhan University and our engineer are powerfull and professinal.

Even Mitsubishi bought from us and said our quality is amazing and price low.

After all the efforts of our man about 2/3 market in China is ours now and we want to enlarge our market abroad, with high quality and low price, we wellcome all customer judge and test us.

Our warranty is 2 years, that mean any products failed within 2 years, we will replace or repaire for free.

Quality is our llife and we always try our best to make according to your requirements.

If you have any other questions, please call us free!
