Barbed Wire Machine - China

price: check with company for price

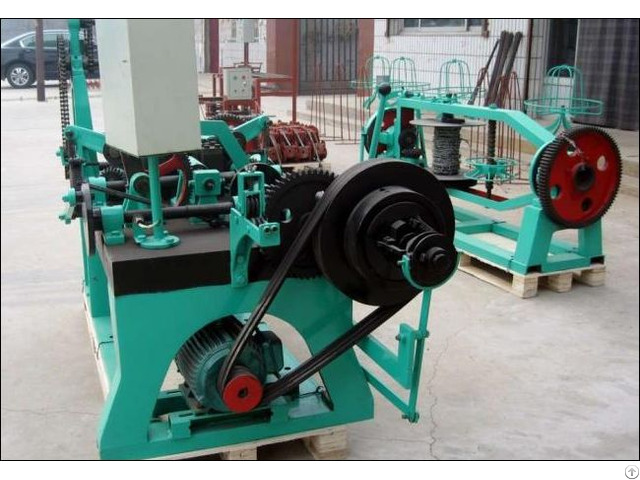

Barbed Wire Machine

Products Photos Catalog Barbed Wire Machine Photos Catalog

We supply barbed wire machine for making of various barbed wires: IOWA Type Barbed Wire in all wire sizes and barb spaces.

Our barbed wire machine produces galvanized barbed wire, plastic coated barbed wire of different patterns.

Barbed wire single or double twisted.

We are capable of producing stainless steel wire mesh from 1mesh to 500mesh for square mesh, and from 12x64mesh to 400x2800mesh for dutch weave mesh.

The following specifications are listed for your reference.

CS-A Barbed Wire Machine is designed to produce screens with double (or single).

Stranded barbed steel wire, thermo-plated with zinc.

The machine is of horizontal design, consisting of two parts, assembled together at the middle.

It is safe and reliable in operation, capable of turning out high quality products with consistency.

Gauge of Strand and Barb in B.W.G.

Approximate Length per Kilo in Meter

Barbs spacing 3" Barbs spacing 4" Barbs spacing 5" Barbs spacing 6"

12x12 6.0617 6.7590 7.2700 7.6376

12x14 7.3335 7.9051 8.3015 8.5741

12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221

12-1/2x14 8.1096 8.814 9.2242 9.5620

13x13 7.9808 8.899 9.5721 10.0553

13x14 8.8448 9.6899 10.2923 10.7146

13-1/2x14 9.6079 10.6134 11.4705 11.8553

14x14 10.4569 11.6590 12.5423 13.1752

14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034

15x15 13.8927 15.4942 16.6666 17.5070

15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386 Specification Diameter, screen wire 2.5-3mm Material, screen wire & barbed wire Low carbon steel wire, thermo-plated with zinc

Diameter, wire for barbs 2-2.5mm total weight 1500 kgs

Barb pitch spacing 3, 4, 5, 6in power of motor 3 kw

PVC-plated -


Company Contact:


  • Phone: +86-534-2530006

  • Address: No.68 ,Renxing Road, Dezhou, China., dezhou , shandong , China

  • Email: Email

Published date: December 9, 2021

  • Business Description: For more than 10 years, Firstlin has been one of the largest corporate iron wire and wire mesh provider, located in Anping, China.

    We work with you directly, to provide good quality galvanized wire and related products and more efficient services.

    We offer a wide range of metal products and services including:

    Galvanized wire products

    Wire Mesh Products

    Machines for wire mesh

    As one of the region's most famous manufacturers, we sell our products in more than 100 countries around the world.
