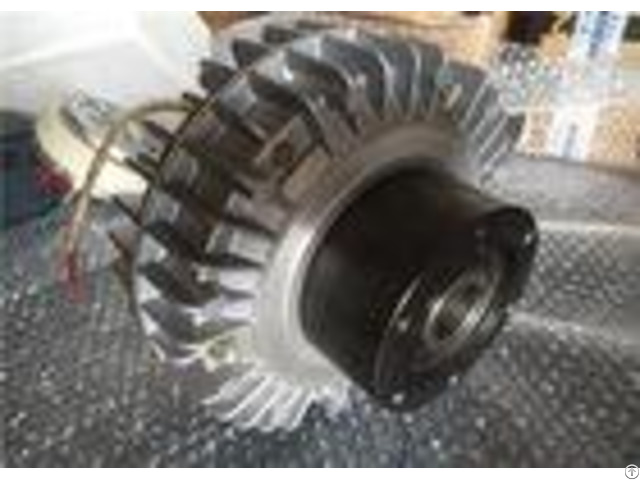

Flange Type Magnetic Powder Clutch Dc24v 6nm 400nm For Film Machine - China
price: check with company for price
Flange type magnetic powder clutch - - - - Model | Torque NM | Voltage V | Current A | Speed rpm/min | Slip power w | Outline dimention | Hollow shaft size | Flange size | Fixed stator Size | D | L | d(H7) | b(F8) | L1 | L2 | L3 | | d1*depth | D1(g7) | D2 | D3 | D4 | L4 | ZA-0.6A | 6 | 24 | 0.3 | 1800 | 130 | 128 | 86 | 15 | 4 | 4 | 21 | 21 | | M6*10 | 70 | 60 | 60 | 82 | 7 | ZA-1.2A | 12 | 24 | 0.39 | 1800 | 320 | 160 | 103 | 18 | 5 | 5 | 25 | 32 | | M6*10 | 80 | 68 | 68 | 96 | 13 | ZA-2.5A | 25 | 24 | 0.73 | 1800 | 450 | 180 | 119 | 20 | 5 | 5 | 26 | 36 | | M6*10 | 90 | 80 | 80 | 114 | 17 | ZA-5A | 50 | 24 | 0.94 | 1800 | 700 | 220 | 150 | 30 | 7 | 7 | 31 | 48 | | M8*12 | 110 | 95 | 95 | 150 | 20 | ZA-10A | 100 | 24 | 1.21 | 1800 | 900 | 275 | 166 | 35 | 10 | 10 | 32 | 48 | | M10*18 | 125 | 110 | 110 | 176 | 18 | ZA-20A | 200 | 24 | 1.9 | 1000 | 1900 | 335 | 198 | 45 | 12 | 12 | 45 | 59 | | M10*18 | 160 | 140 | 140 | 200 | 21 | ZA-40A | 400 | 24 | 2.2 | 1000 | 2600 | 360 | 258 | 50 | 14 | 14 | 50 | 68 | | M10*18 | 160 | 140 | 140 | 200 | 21 | - - - - Introduction of magnetic powder clutch The magnetic powder brake/clutch is composed of active rotor(input shaft), driven rotor(output shaft) and Yoke with excitation coil.
The three parts are assembled relative concentric and form a system which can rotate relatively.
The annular gap between active rotor and driven rotor is full of alloy powder which has high magnetic conductivity.
Company Contact:
- Posted By: Wu Han Micro Control Electric Company
- Phone: 86-27-52237201
- Address: Room D-011 No. 517 Ming-ze Peninsula Luoshi South Road, Hongshan District, Wuhan City, Wuhan , Hubei , China
- Email:
Published date: January 9, 2018
- Business Description: Wuhan Micro Control Electric Co, LTD ( Wuhan True Engin Technology Development Co., Ltd ) is located in the coast of South Lake and surrounded by numerous colleges and universities.
The Company focuses on the developing and production of industrial test and control system.
