High Manganese Steel Ball Mill Liner

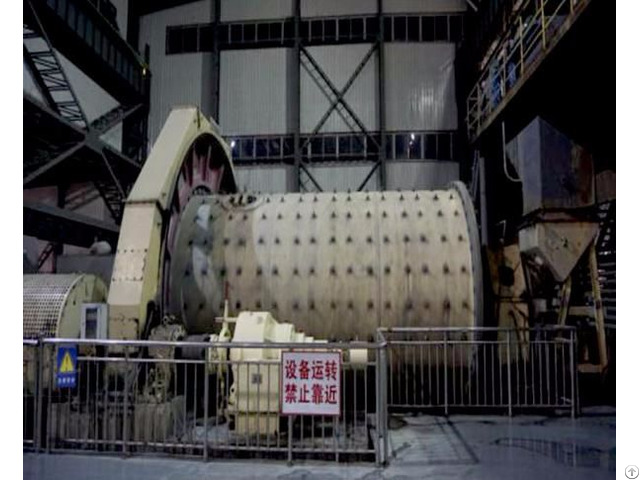

High manganese steel ball mill liner is used to protect the direct impact and wear of grinding ball and materials.

At the same time, the different shapes of high manganese steel liners are used to adjust the movement state of the mineral, thereby enhancing the efficiency of grinding and crushing, which is helpful to improve the grinding efficiency, increase the output and reduce the mental consumption.

Main applications:

High manganese steel liner can be used for ball mill, crushers, loaders, excavators, Cutting tools, bulldozers, digging bucket and knife plate, screw conveyor and other wear-resistant structural parts production equipment, by gas cutting processing and various welding, despite the steel sheet with high strength, but cold bending performance well, it can be cold forming.

Metallurgical industry: mainly used in sintering and ironmaking etc., bin liner, skip, pipes, cloth feeder and base, hopper, pipes, pump case, crusher parts, slag troughs, fans, vibrating screen;

Cement industry: the impact plate, pipe, pump case, mill liners, crusher parts, slag troughs, a variety of chassis, vibrating screen and so on.

Power industry: the ash pipe, hopper, fan blades, combustion pipelines, tanks and transport material bucket liners, crusher parts, mill parts, air handling systems and transport aircraft.

Coal industry: mainly used for coal washing and mining and mineral transport, truck cargo tank liner, bin liners, transporting tank lining, crusher unit, cover plate, wear bars and wear plates.

Test report

High manganese steel liner product inspection and testing report

Product Name GBMn13

Performance

Hardness (HBS): 255-285 Impact Value (J / cm²)：≥ 155

C Si Mn S P Ni

0.9 - 1.5 0.4 - 0.5 11 - 14 0.03-0.5 0.3 - 0.5 0.1 - 0.3

Cu Ti V W 0.06 - 0.12 0.06 - 0.12 0.06 - 0.12 0.06 - 0.12 Product Name GBMn13Cr2

Performance

Hardness (HBS): 265 - 290 Impact Value (J / cm²)：≥ 150

C Si Mn S P Cr

0.9 - 1.5 0.4 - 0.5 11 - 14 0.03 - 0.5 0.3 - 0.5 1.5 - 2.5

Cu Ti V W 0.06 - 0.12 0.06 - 0.12 0.06 - 0.12 0.06 - 0.12 Inspection results:

The test about the chemical composition of product and the using performance meets the standards of our factory.

Company Contact:

• Posted By: Chengde Rongmao Cast Steel Co.,Ltd

• Phone: 86-010-65003129

• Address: Kuangcheng, Chengde City, Hebei Province, China, Chengde , Hebei , China

• Email:

• Website: http://www.chinarongmao.com/

• Business Description: Chengde Rongmao Cast Steel Co., Ltd. founded in 1980s, and located in historic and cultural city - Chengde China, is a large-scale casting & forging enterprise.

  For thirty years Rong Mao has produced Austempered Ductile Iron (ADI) grinding ball, Forged grinding balls, ball mill liner, various models of jaw crusher tooth plate, hammer crusher liner, castor-oil plant section, high-chromium alloy combined hammer and all kinds of high manganese steel castings.

  The company has 400 staff, including technical management personnel of 80 and 30 with senior and medium professional titles, and its plant covers an area of 36, 000 square meters, with workshop area of 26, 000 square meters and fixed assets of 200 million yuan.

  The annual output is 100, 000 tons.

  Faced with fierce market competition, the company relys on advanced production equipment, perfect detection technology, standard casting process, innovative heat treatment experience and scientific testing means, and an accurate analysis of the chemical composition to produce good wear resistance and low broken rate products, which are sold through the country.

  “Rong Mao” brand is known nationwide; In 2007 Chengde Rong Mao Cast Steel Co., Ltd successfully passed the ISO9001 quality system certificate and ISO14000 environment system certification.

  With stable development, excellent product quality and honest services, the company stands out from the domestic foundry industry, and becomes a key member of China Foundry Association, and in successive years has been awarded as “honor contract and keep promise” company by provincial and municipal government.

  Our company has been adhering to high-quality, low-cost, timely business policy to won the recognition of mining, cement, and metallurgical enterprises.

  Our products are sold to Hebei, Liaoning, Shandong, Shanxi, Henan, Inner Mongolia, Jilin and North Korea, South Korea, Mongolia, Russia and many countries.

  We will insist the business philosophy of "science and technology as the driving force, survival on quality, and good faith striving for the development", dedicate to provide you with first-class products and quality service, and welcome new and regular customers to come and give guidance.

  Let's meet in Chengde, China.
