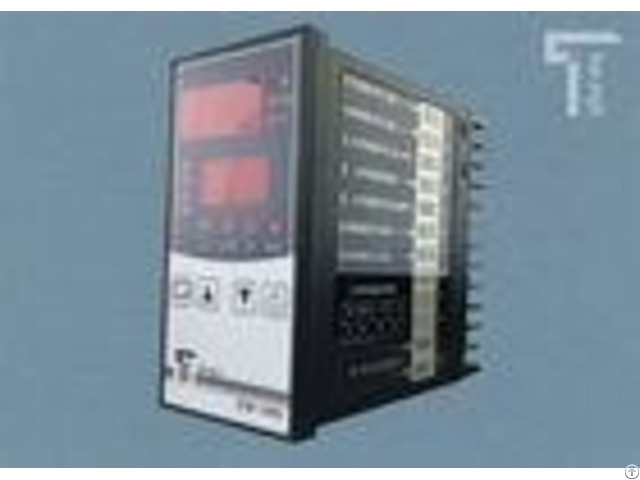

High Precision Auto Tension Controller Dc 24v Power Supply 96 48 109mm - China
price: check with company for price
Auto tension meter with tension display Features: Key intelligently set zero, scaling, operation simple convenient.
* Can select left /right total tension display.
* Adapt SMT, small size, light weight.
* Tension controller with STS ans STSA for option.
* Hardware and software to restrain power frequency interference, output steady and reliable.
* Bedded installation, easy and convenient .
Attention: STM-050 tension meter only display tension, no control signal output, other functions same as STM-10PD.
- - - - Parameters | Model | ST-1OPD/STM-050 | Power Supply | DC 24V | Input Analog singal | 1 - L+~L-;R+~R-;Left, right tension loadcell signal input | STS tension loadcell signal (0~200mv, power supply DC5V) | STSA tension loadcell signal(0~15mv;power supply DC5v) | Control output | 1 - Vout-GND: DC0~10V/0~5V | 2 - Iout-GND: DC0~20mA/4~20mA | (STM-050 without Vout, Iout output) | Tension Display | L+R Total tension L: left tension R: right tension | Fixed output | 5V+-GND: DC5V tension loadcell power supply | Outline size | 96*48*109mm | - - - - Size and installing
Company Contact:
- Posted By: Wu Han Micro Control Electric Company
- Phone: 86-27-52237201
- Address: Room D-011 No. 517 Ming-ze Peninsula Luoshi South Road, Hongshan District, Wuhan City, Wuhan , Hubei , China
- Email:
Published date: January 9, 2018
- Business Description: Wuhan Micro Control Electric Co, LTD ( Wuhan True Engin Technology Development Co., Ltd ) is located in the coast of South Lake and surrounded by numerous colleges and universities.
The Company focuses on the developing and production of industrial test and control system.
